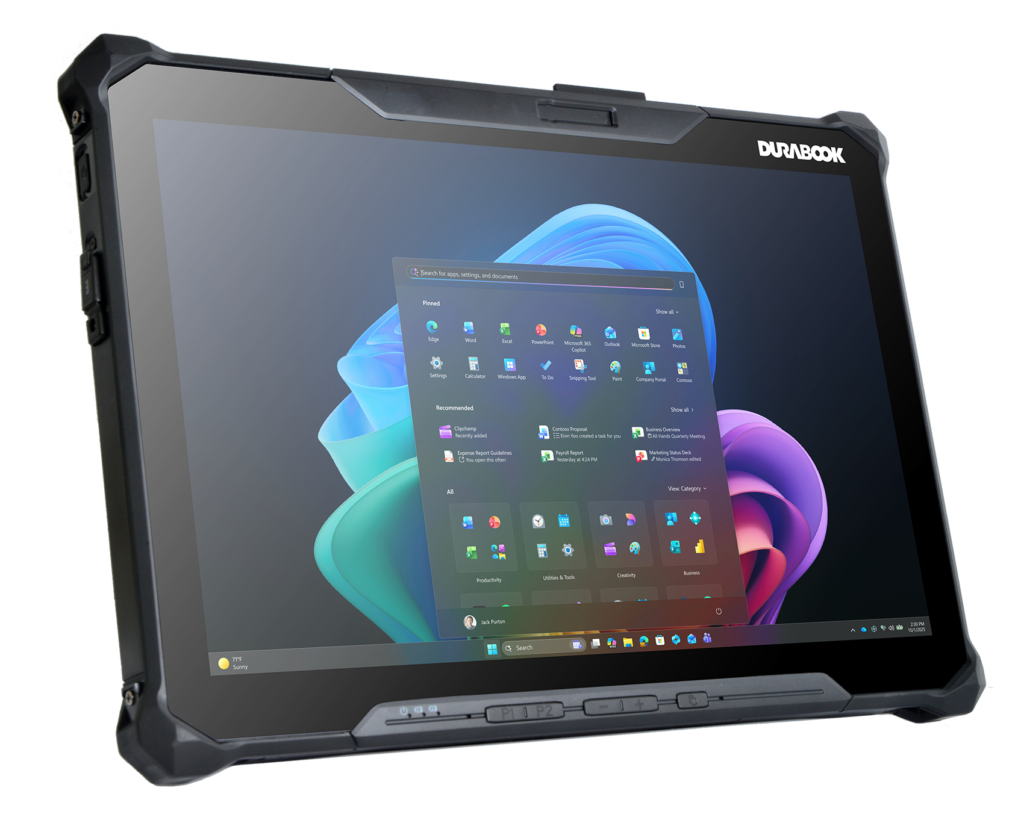

R12 Rugged Tablet
Edge AI. Situational View. Field Connectivity.
On-Device Edge AI
Up to 180 TOPS integrated, scaling to 412 TOPS with optional NVIDIA® graphics.
Clarity in Motion
A 12.2-inch display keeps maps, video and AI results in view.
Mission-Ready Connectivity
Dual LAN with 2.5G connects sensors and networks at the same time.
Bring Active Edge AI into the field. The Durabook R12 is a fully rugged 12.2-inch Windows tablet. It connects to cameras, sensors and vehicle systems, processes their data on the device and presents the results on one clear display. Up to 412 TOPS of combined AI compute with optional NVIDIA® RTX™ 2000 Ada graphics, high-speed 2.5G LAN and a detachable keyboard adapt R12 to every stage of the mission.
SENSE. ANALYSE. ACT.

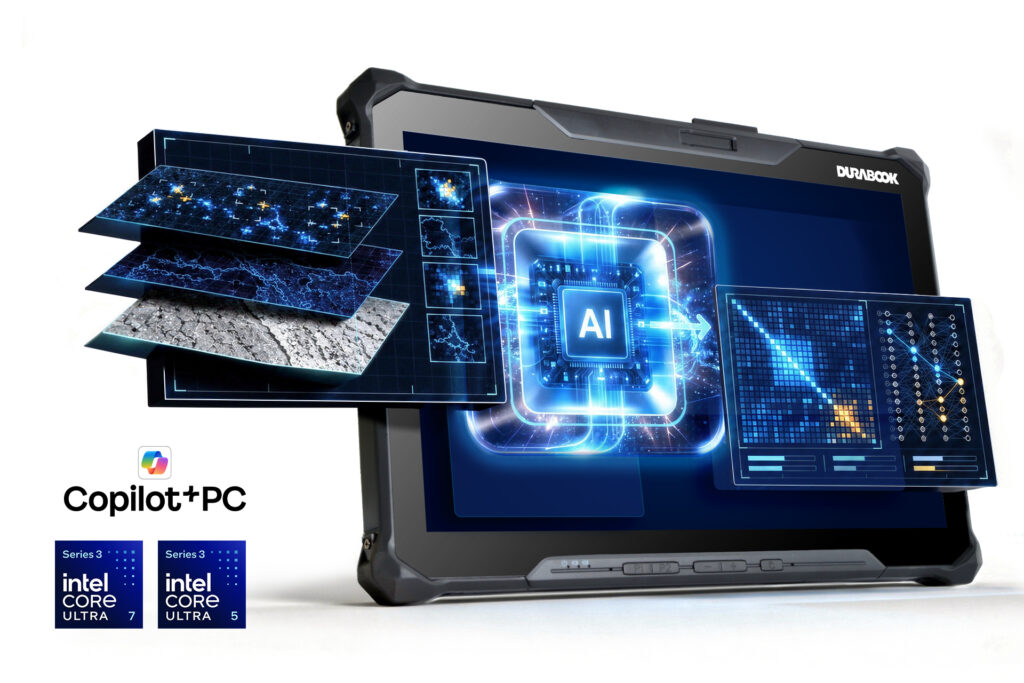

Active Edge AI Performance
R12 processes data from cameras, sensors and connected systems on the device, so field teams can act on live information even when the link to the cloud or headquarters is limited. Intel® Core™ Ultra Series 3 processors combine CPU, GPU and NPU engines for up to 180 TOPS of total platform AI performance, including an NPU of up to 50 TOPS, and up to 64GB of LPDDR5x memory keeps AI, mapping and operational applications running together on a Copilot+ PC. With compatible applications, this supports object detection, video analysis and anomaly detection at the edge.
HEAVY WORKLOADS.
HANDHELD SIZE.

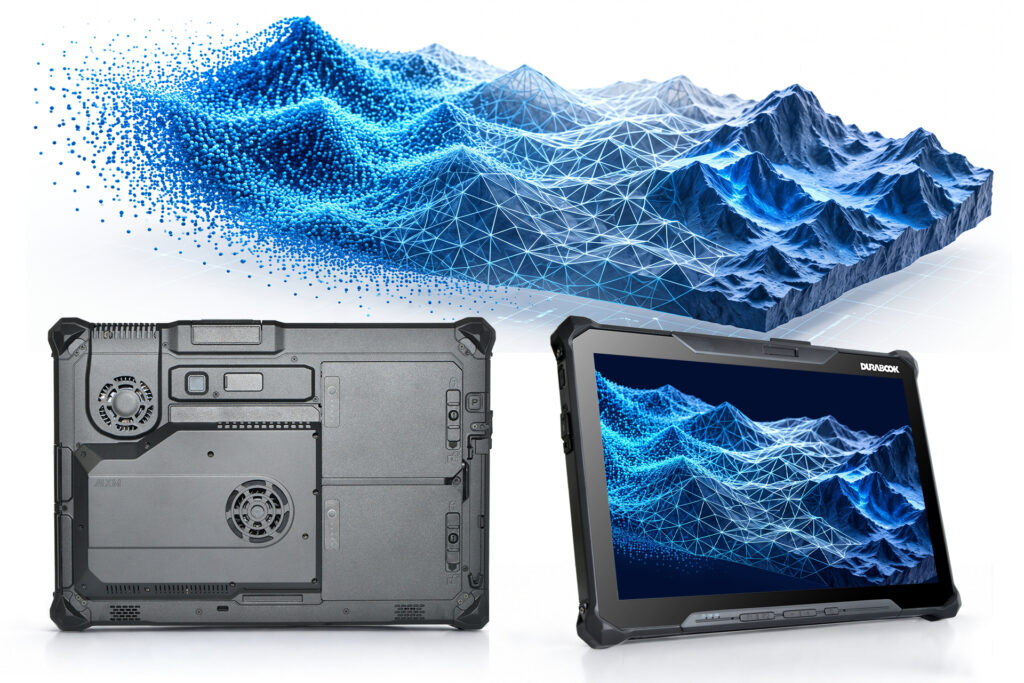

Dedicated NVIDIA® RTX™ 2000 Ada Graphics
Optional dedicated NVIDIA® RTX™ 2000 Ada graphics bring energy-efficient, workstation-class performance to a fully rugged 12.2-inch tablet. The GPU adds up to 232 TOPS to the 180 TOPS of integrated AI performance, for up to 412 TOPS of scalable, combined AI compute for AI inference, computer vision and mission-critical applications at the edge.
With 8GB of dedicated GDDR6 graphics memory working alongside the Intel® CPU, GPU and NPU, R12 runs compatible high-resolution imagery, video analysis, 3D mapping and GIS applications on site, workloads that usually require a larger system. Field teams can process drone imagery or render terrain models where they work, instead of sending raw data back.
SEE MORE. CARRY LESS.

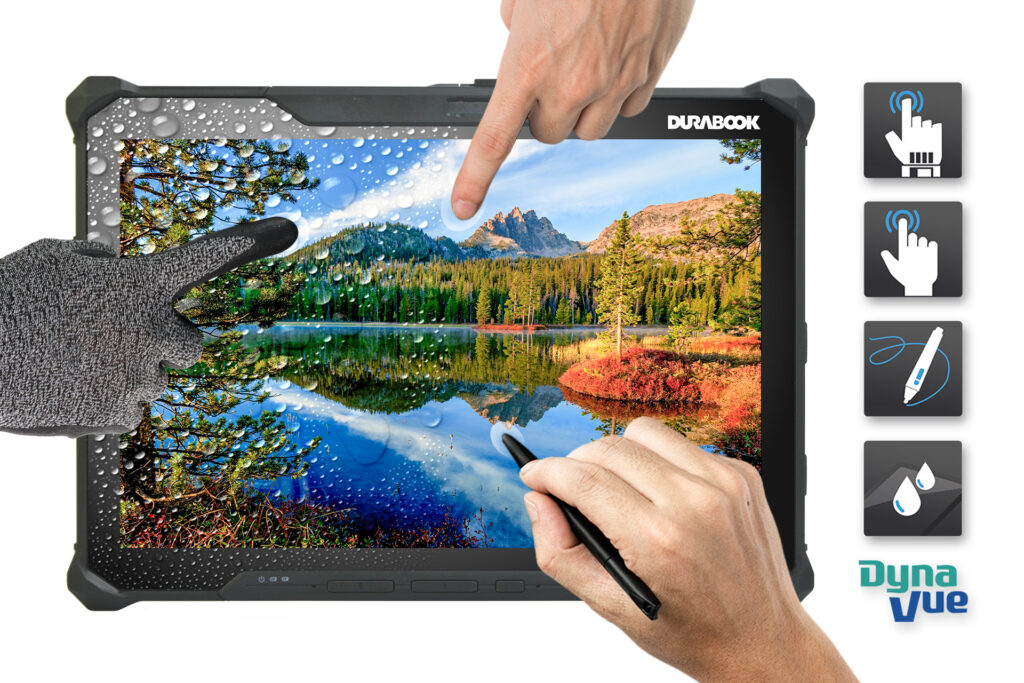

Right-Sized 12.2-Inch Situational View
Keep maps, live video, sensor data and AI results in view together on a 12.2-inch WUXGA (1920 × 1200) display. Its 16:10 screen and ultra-thin bezels fit in a chassis smaller than current 11.6-inch tablets on the market. DynaVue® sunlight-readable technology and up to 1,200 nits keep detail clear in bright or changing light, while four touch modes (finger, glove, stylus and water) and Microsoft Pen Protocol (MPP) 2.0 active pen support allow precise input across different working conditions.
FROM SENSOR TO DECISION.

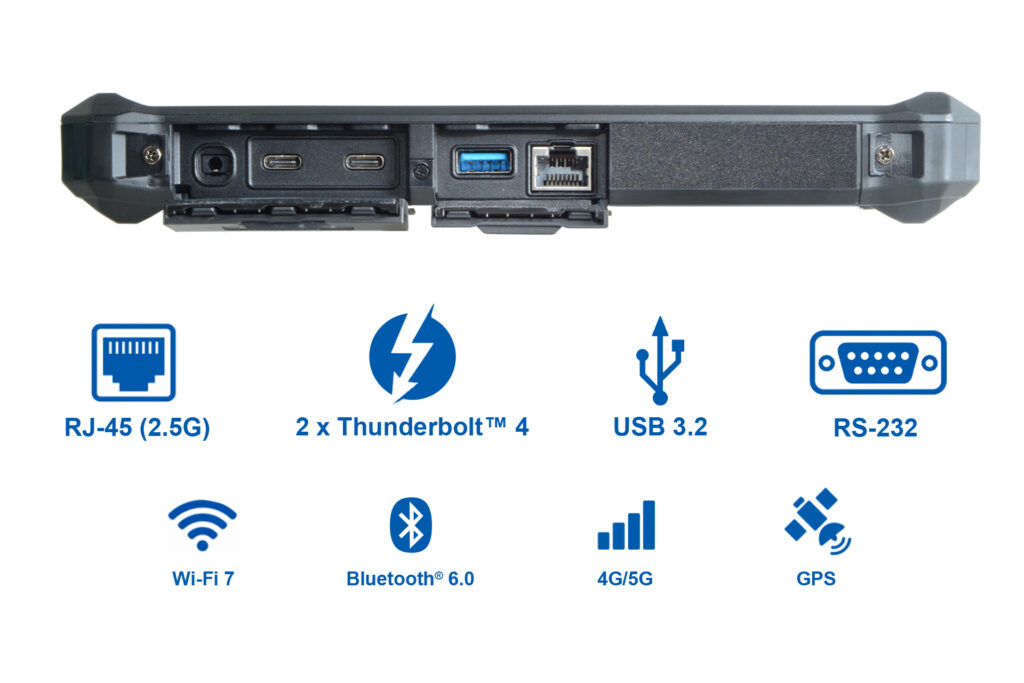

Mission-Ready Field Connectivity

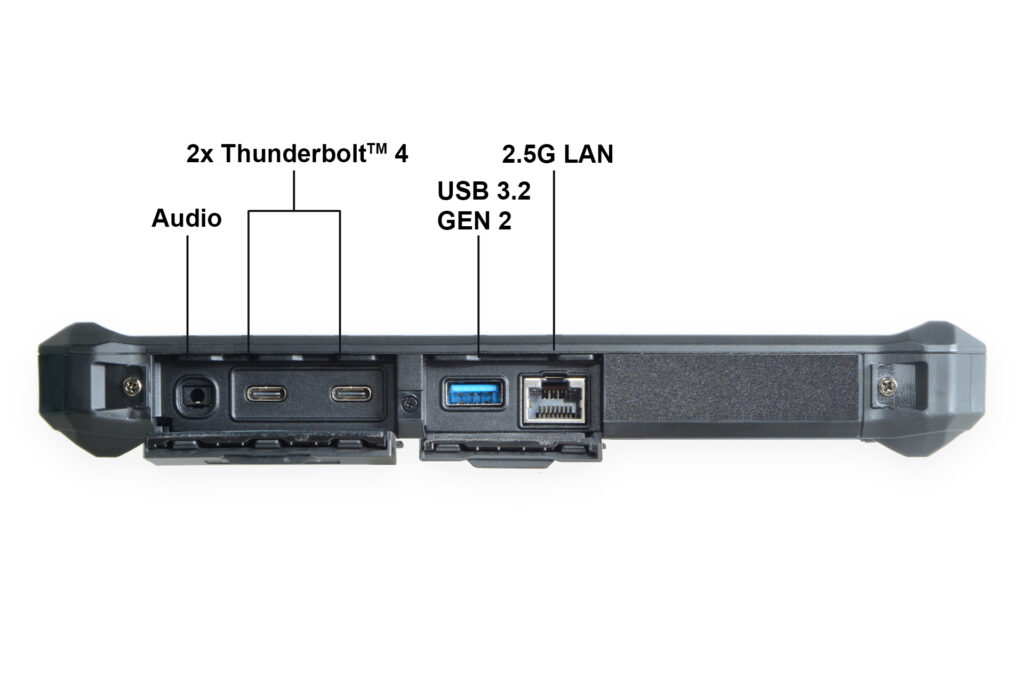

Connect cameras, sensors and vehicle systems directly. A built-in 2.5G LAN port brings high-bandwidth data, including 4K video and 8K content, straight into R12, and an optional second LAN port, rare in a rugged tablet, lets device and external networks run separately. Two Thunderbolt™ 4 ports, USB 3.2 Gen 2 and an optional RS-232 serial port link both modern and legacy field equipment.
Wi-Fi 7, Bluetooth® 6.0, optional 4G/5G, dual SIM (Nano SIM and eSIM) and dedicated GPS keep teams connected and positioned in the field. TPM 2.0, Secured-core PC, Windows Hello facial recognition and optional Intel® vPro™ help secure device access and operational data.
YOUR MISSION DEFINES THE DEVICE.

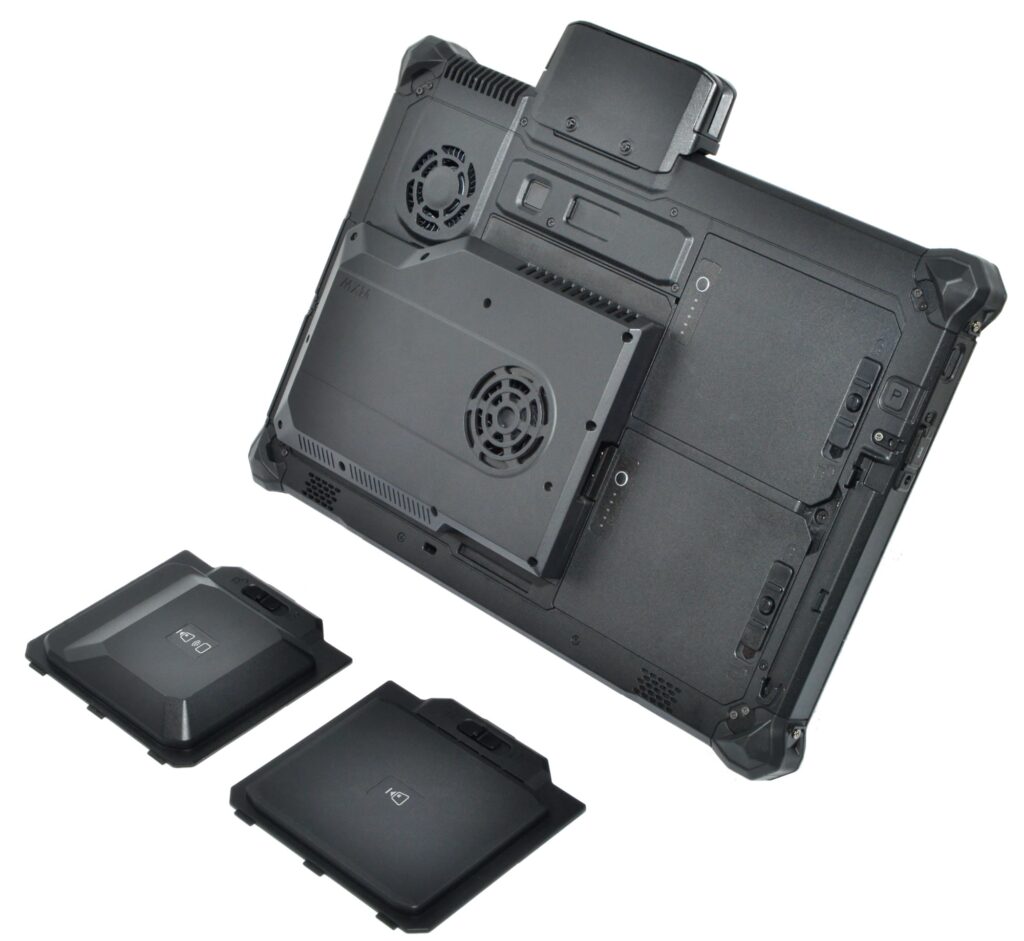

Modular Expansion & Customisation

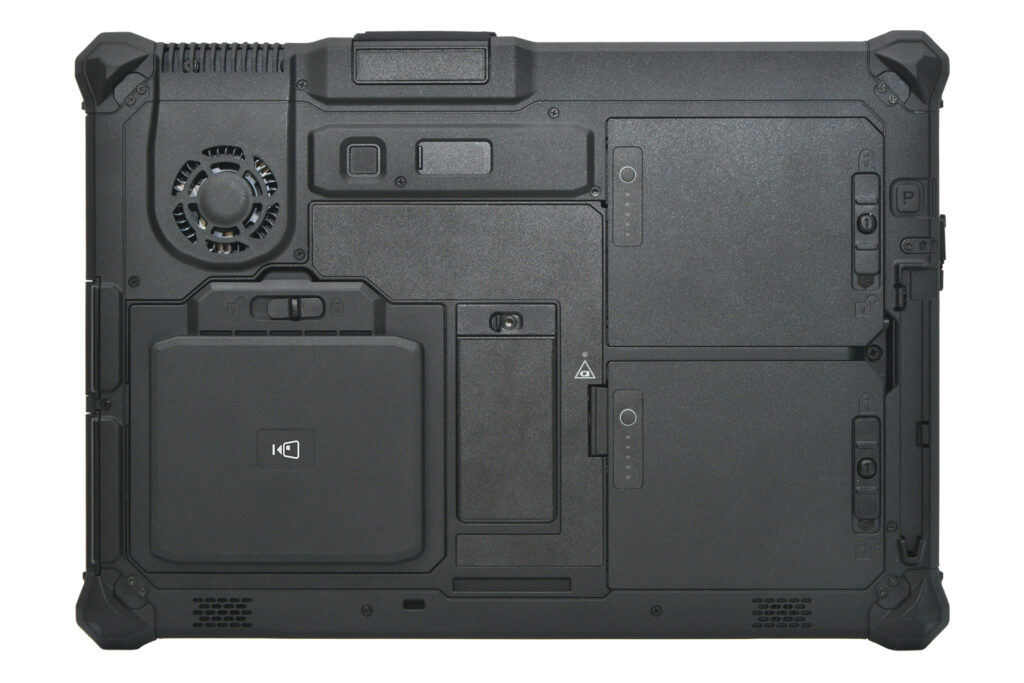

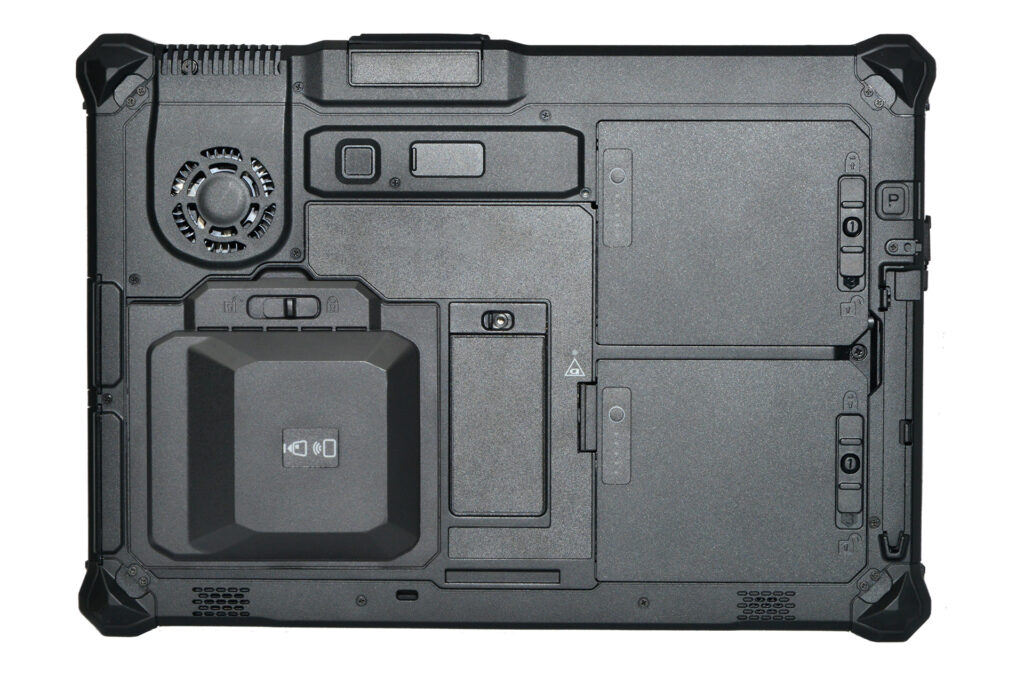

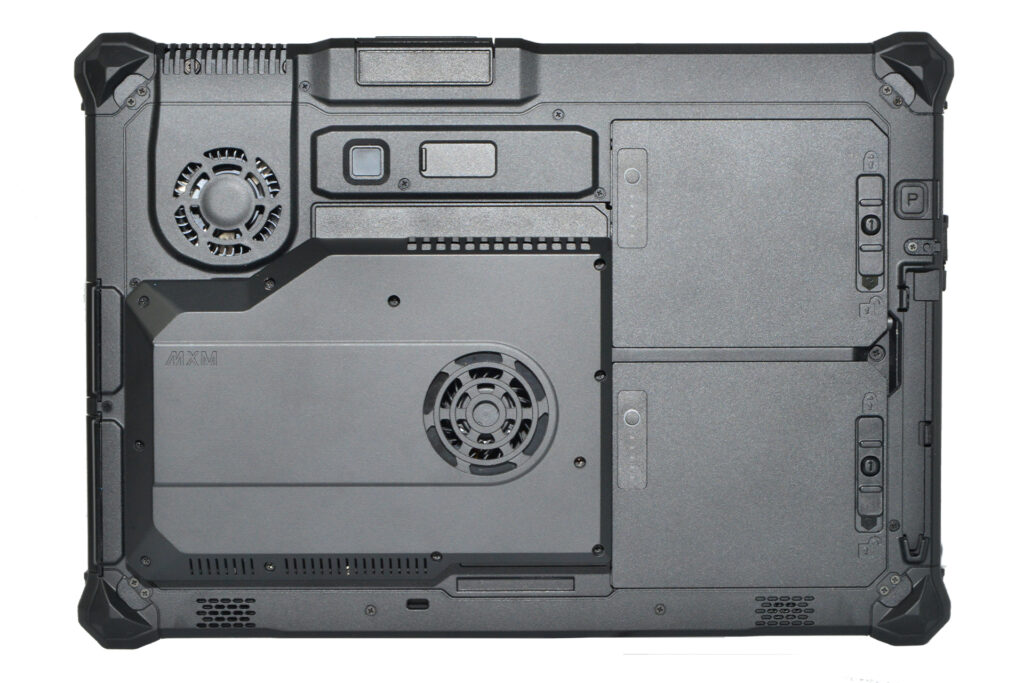

Configure R12 around the work it needs to do. Back-panel expansion modules add a smart card reader, LF/HF or UHF RFID (NFC) reader, magnetic stripe reader or the optional NVIDIA® GPU/AI accelerator with a built-in smart card reader. Top-side options include a 1D/2D barcode scanner, a second RJ-45 LAN port, RS-232/422/485 or an extra USB Type-A or Type-C port, alongside an optional fingerprint scanner, quick-release NVMe SSD storage and RF antenna pass-through. Other custom features are available on request for purpose-built configurations.
Smart card + RFID (NFC)
Smart card reader
NVIDIA® GPU / AI accelerator
RUGGED BUILD.
INTELLIGENT CORE.

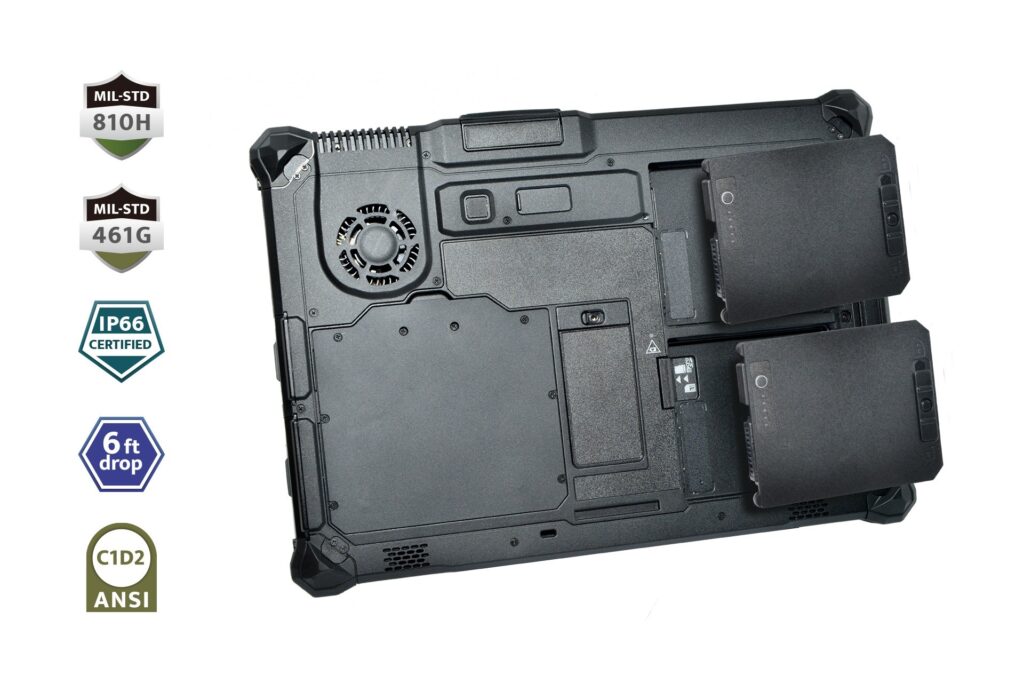

Certified Protection, All-Day Power
Built for demanding field conditions, R12 meets MIL-STD-810H, IP66 and 6-foot drop standards, resisting drops, shock, vibration, dust and water, and operates from −29°C to 63°C (−20°F to 145°F). MIL-STD-461G certification for electromagnetic compatibility and ANSI/UL C1D2 certification for specified hazardous locations support use in vehicles, industrial sites and oil and gas operations. Dual removable batteries deliver up to 20 hours of battery life, and the optional hot-swap function lets a battery be replaced in the field without shutting down.
DETACH TO MOVE.
DOCK TO TYPE.

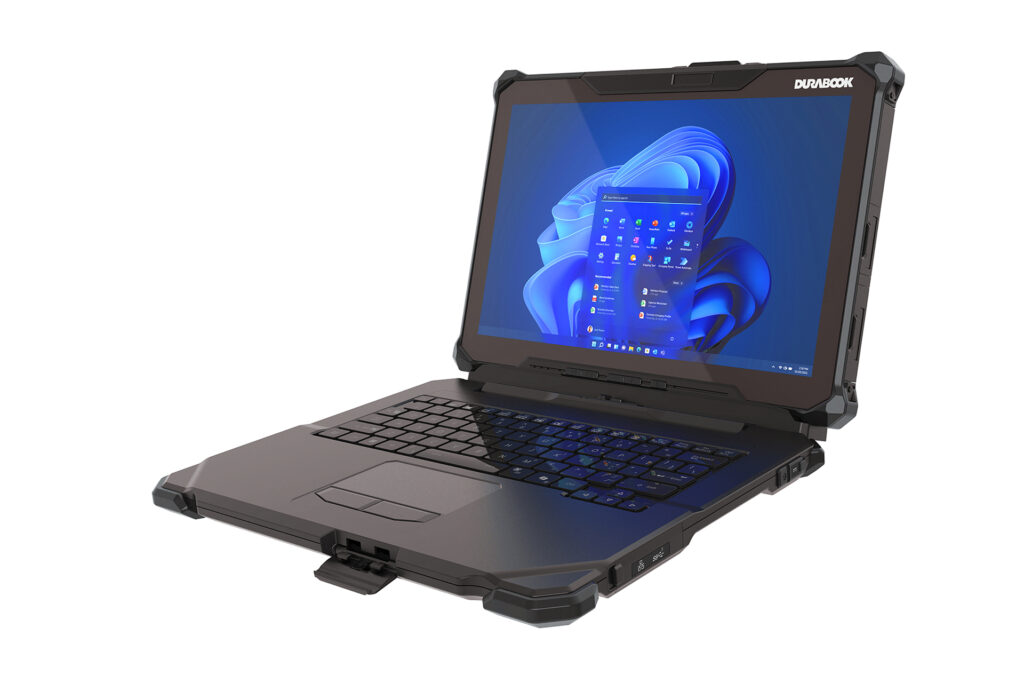

Versatile 2-in-1 Design
Add the detachable keyboard dock to turn R12 into a 2-in-1 laptop. The 88-key backlit keyboard supports reports, data entry and longer typing, then detaches when work returns to touch-based field use, without changing devices. The dock also adds USB Type-C, USB Type-A and DC-in, with optional RJ-45 plus USB Type-A or HDMI.
Specifications
Rugged Specs
| MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Salt Fog) | |
| MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) | |
| Optional ANSI/UL 121201, Class I, Division 2 6′ drop, 26 faces IP66 certified Magnesium alloy chassis Port covers Sunlight readable display Optional dual hot-swappable battery technology |
Tech Specs
| Display | 12.2” WUXGA LCD (1920 x 1200) 1,200 nits DynaVue® sunlight readable display with capacitive multi-touch screen Optional with digitizer User selectable touch mode for Finger/Water, Glove, or Stylus programmable function Support Microsoft Pen Protocol (MPP) 2.0 active pen function |
| Operating System | Windows® 11 Pro 64-bit |
| Processors | Intel® Core™ Ultra 7 366H vPro, 25W (18M Cache, up to 4.80 GHz, 16 cores, 16 threads, with Intel® AI Boost NPU up to 50 TOPS) Intel® Core™ Ultra 7 356H, 25W (18M Cache, up to 4.70 GHz, 16 cores, 16 threads, with Intel® AI Boost NPU up to 50 TOPS) Intel® Core™ Ultra 5 336H vPro, 25W (18M Cache, up to 4.60 GHz, 12 cores, 12 threads, with Intel® AI Boost NPU up to 47 TOPS) Intel® Core™ Ultra 7 365 vPro, 25W (12M Cache, up to 4.80 GHz, 8 cores, 8 threads, with Intel® AI Boost NPU up to 49 TOPS) Intel® Core™ Ultra 7 355, 25W (12M Cache, up to 4.70 GHz, 8 cores, 8 threads, with Intel® AI Boost NPU up to 49 TOPS) Intel® Core™ Ultra 5 335 vPro, 25W (12M Cache, up to 4.60 GHz, 8 cores, 8 threads, with Intel® AI Boost NPU up to 47 TOPS) Intel® Core™ Ultra 5 325, 25W (12M Cache, up to 4.50 GHz, 8 cores, 8 threads, with Intel® AI Boost NPU up to 47 TOPS) |
| Memory | 16GB up to 64GB (LPDDR5x-8533) |
| Storage | 256GB NVMe PCIe SSD Optional 512GB/1TB/2TB NVMe PCIe SSD Optional OPAL 2.0 SSD |
| Graphics | Intel® Graphics Optional NVIDIA® RTX 2000 Ada, 8GB GDDR62,5 |

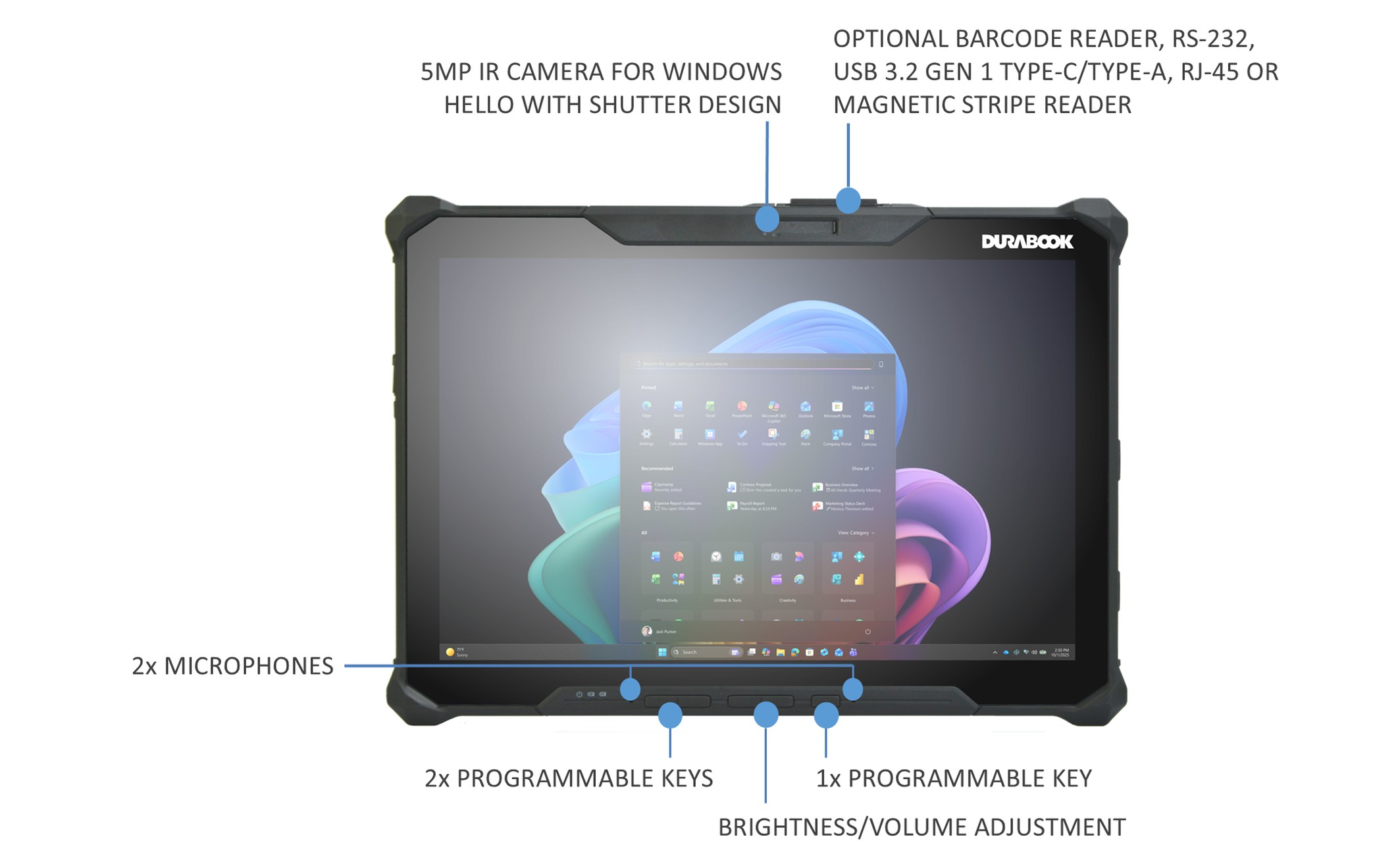

| Camera | Integrated 5.0 MP IR camera for Windows Hello with dynamic shutter design Optional 13.0 MP rear auto-focus camera with flash and dynamic shutter design |
| Audio | Integrated microphone x 2 Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |

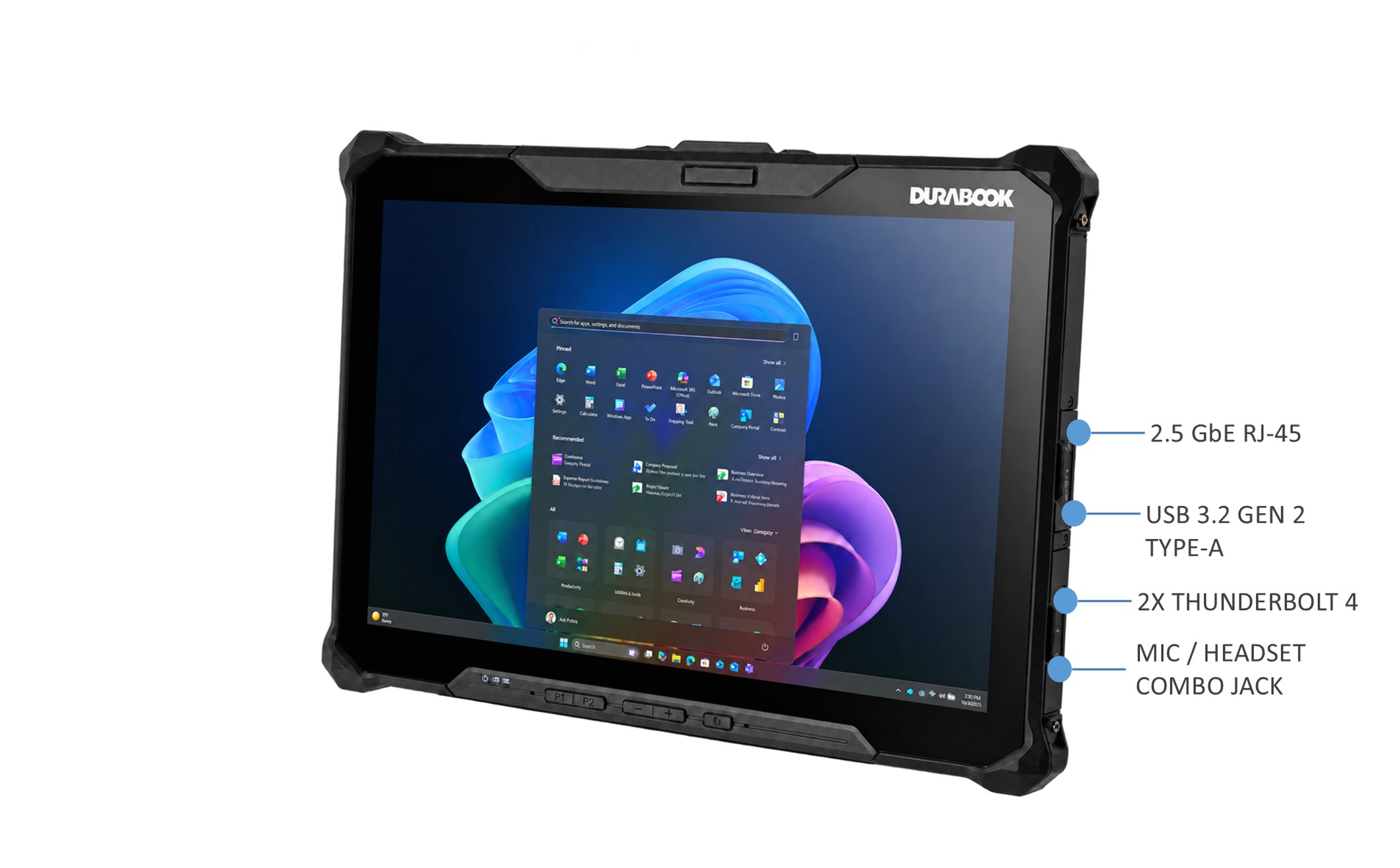

| I/O Interfaces | 2.5Gbps Ethernet (RJ45) x 1 Thunderbolt 4 (type C) x 2 USB 3.2 Gen2 (type A) x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (20-pin Pogo) x 1 Dual SIM (Nano SIM & eSIM) DC-In jack x 1 Optional USB 3.2 Gen1 (type C) x 13 Optional 2nd USB 3.2 Gen1 (type A) x 13 Optional serial port (RS232/RS422/RS485: D-sub,9-pin) x 13 Optional 1D/2D barcode reader x 13 Optional 10/100/1000 Ethernet (RJ45) x 13 Optional smart card reader x 12 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Expansion Slots | Optional magnetic stripe reader3 Optional smart card reader2 Optional smart card reader with LF/HF-RFID (NFC)2 Optional LF/HF-RFID (NFC)2 Optional UHF-RFID (NFC)2 Optional NVIDIA® RTX 2000 Ada2 |
| Keyboard & Input | 7 buttons (4 user-definable keys) |
| Communications | Integrated 2.5Gbps Ethernet Intel® Wi-Fi 7 BE211 (802.11 be) Bluetooth® V6.0 Optional dedicated GPS module (UBLOX-NEO-M9N) Optional 4G LTE multi-carrier mobile broadband1 Optional 5G1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Security | Intel® vPro® Technology (per CPU options) Secured-core PC TPM 2.0 NIST BIOS compliant IR Camera (support Windows Hello) Stealth mode Kensington lock Night vision mode Optional fingerprint scanner Optional smart card reader2 Optional smart card reader with LF/HF-RFID (NFC)2 Optional LF/HF-RFID (NFC) reader2 Optional UHF-RFID (NFC) reader2 |
| Power | AC adapter: 100-240V, 50Hz-60Hz, 90W Main battery: Li-Ion, 7.6V, 4000mAh, 10 hours4 Optional hi-cap battery: Li-Ion, 7.6V, 8000mAh, 20 hours4 |
| Environment | Temperature Operating: -29°C ~ 63°C / -20°F ~ 145°F Storage: -51°C ~ 71°C / -60°F ~ 160°F Humidity: 5% ~ 95% |
| Dimension & Weight | 302 mm (L) x 210.9 mm (W) x 23.5 mm (H)6 1.45 kg6 |
| Warranty | 3-year limited warranty standard |
- 4G LTE and 5G are mutually exclusive options.
- Mutually exclusive options.
- Mutually exclusive options.
- Tested using the MobileMark 30 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
- For optimal graphics performance, CPU needs to be paired with 336H or 356H or 366H version, an upgrade of the system memory to 32GB or higher and the SSD capacity to 512GB or higher is recommended.
- Weight and dimensions vary with options.
Accessories
Configured for the job
120W AC Adapter with power cord
90W AC Adapter with power cord
Active Pen*
Battery Charger - 2 bays
Battery Charger - 8 bays
Car Adapter (11-24V DC 90W)

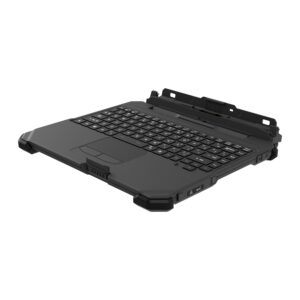

Detachable Membrane Backlit Keyboard R12

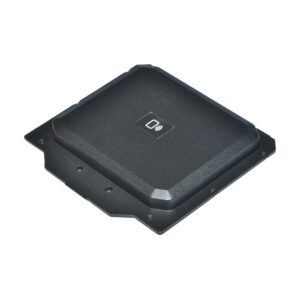

Expansion Module - LF/HF-RFID (NFC) R12

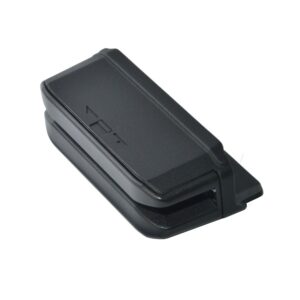

Expansion Module - Magnetic Stripe Reader R12

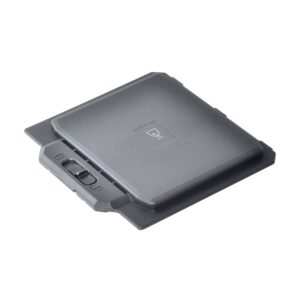

Expansion Module - Smart Card Reader R12

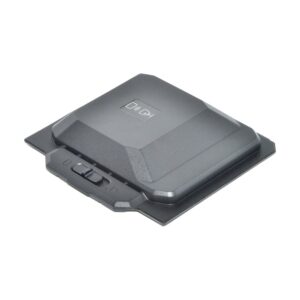

Expansion Module - Smart Card Reader with LF/HF-RFID (NFC) R12
Expansion Module - UHF-RFID (NFC) R12

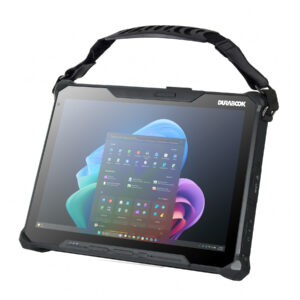

Hand Strap R12

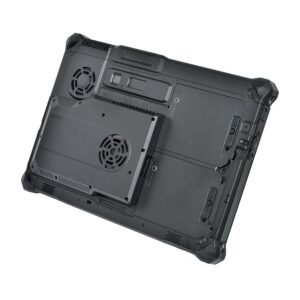

MXM Expansion Module

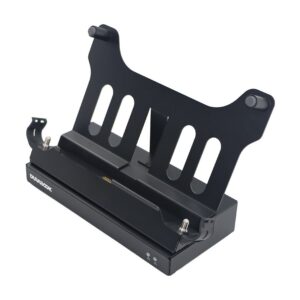

Office Dock R12

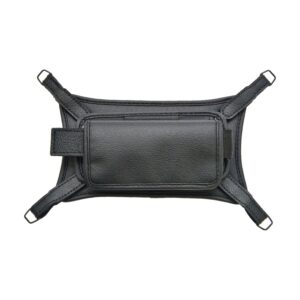

Rotating Hand Strap without Kickstand R12

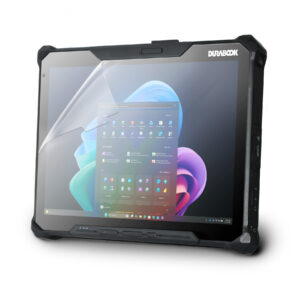

Screen Protector Film R12
Shoulder Strap (2 Point)
Shoulder Strap (4 Point)
Spare Digitizer Pen

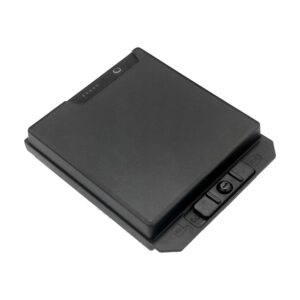

Spare Hi-Cap Battery R12

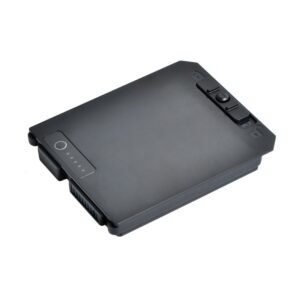

Spare Main Battery R12

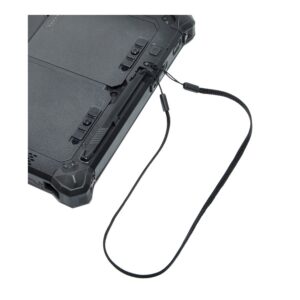

Spare Stylus & Tether for capacitive touch R12
Tablet Stand
USB 3.0 Docking Station
USB-C AC Adapter with power cord
USB-C Docking Station

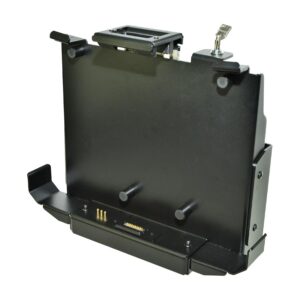

Vehicle Lite Dock R12 with Tri-RF Pass-through
Vehicle Lite Dock R12 without Tri-RF Pass-through

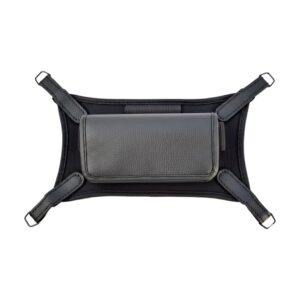

X Strap R12
* Standard package excludes AAAA battery.
BUILT FOR THE REAL WORLD
Where R12 Puts Edge AI to Work

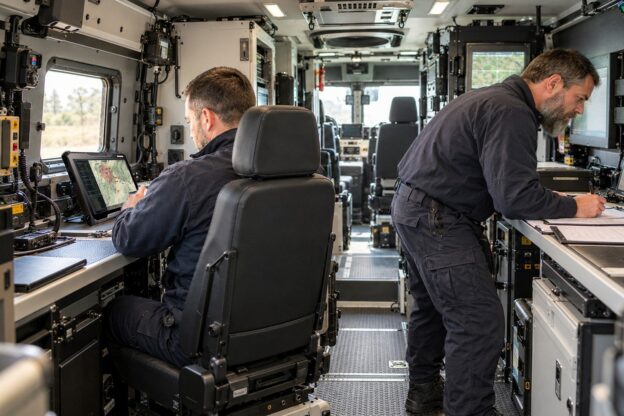

Defence & Tactical Vehicles
Mounted in armoured military and command vehicles, R12 can bring camera, GPS and UAV feeds together and process them on the device. With compatible mission software, crews see routes, risks and sensor data on one screen, then detach the tablet and carry on.

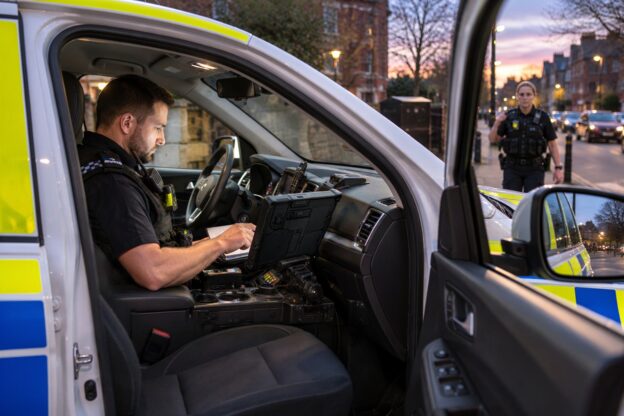

Public Safety Patrol
In patrol vehicles, R12 connects in-car cameras, GPS and dispatch systems to one 12.2-inch view. With local AI applications, officers can review live video and spot risks as they happen, even where mobile coverage is weak.
Fire & Incident Command
At the scene, R12 can combine drone imagery, body and vehicle cameras and maps into one mobile command view. Processing on the device keeps analysis running when networks are congested, helping commanders prioritise areas and assign tasks.

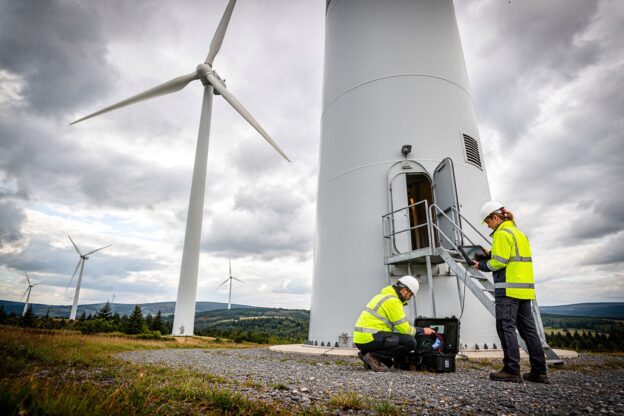

Utilities & Infrastructure Inspection
Engineers connect sensors and inspection cameras to R12 over 2.5G LAN or Thunderbolt™ 4. With compatible analytics software, anomaly detection runs on site, so faults on wind turbines, rail or power networks can be flagged and acted on in the field.
Maritime Patrol
On patrol boats and at coastal stations, R12 can bring radar, AIS, GPS and camera feeds onto one display. Its 1,200-nit screen stays readable on deck, and IP66 protection handles spray and rain while compatible software supports AI-assisted monitoring.

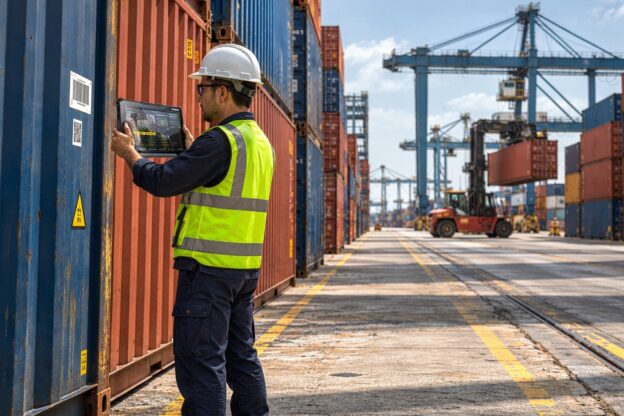

Logistics & Asset Management
In ports, airfields and depots, optional barcode and RFID modules let R12 scan and track assets while it connects to warehouse and vehicle systems. Local AI applications can support inspections and route planning between dispatch and delivery.
