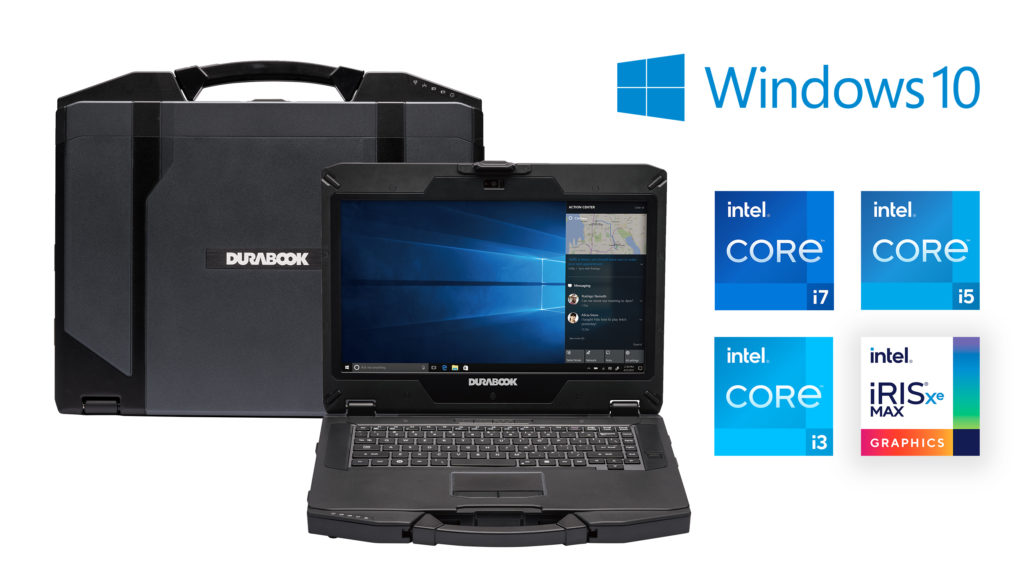

S14I Rugged Laptop

One Step Above Semi Rugged

The all-new Durabook S14I features the latest 11th Generation Intel® CPUs and class-leading 4′ drop spec/IP53 rating, pushing semi-rugged devices to a whole new level. The S14I is engineered to combine military-grade durability, field-worker functionality, computing performance, and long battery life for non-stop use, making it suitable for use in locations where rain or dust may be a regular occurrence. For workers in today’s challenging and versatile working environments, the S14I rugged laptop is truly in a class of its own.

HIGH PERFORMANCE WITHOUT SACRIFICE

The S14I features a significant CPU upgrade with Intel® Tiger Lake 11th generation platform, using Intel’s 10nm processor technology. This device comes with integrated Intel® Iris Xe graphics, and for professionals who use intensive graphic computing, it can be upgraded to an optional standalone NVIDIA GeForce® GTX1050.
With the ultra-high-speed data transmission capability of Intel® Wi-Fi 6 AX201 with max. speed of 2.4Gbps and Bluetooth® V5.2, all information is instantly synced and fed back to the data control center.

EXCEPTIONAL DURABILITY & SECURITY

The S14I is built with a robust mechanical design and rigorously tested components. It meets the standards of MIL-STD-810H; withstands up to a 4-foot drop; and boasts an IP53 rating. This tough yet elegant rugged laptop breaches the boundary between semi-rugged and fully-rugged devices.
It now includes Windows Hello encrypted biometrics, a more secure, user-friendly and faster way of accessing the Window® 10 OS.

DURABOOK S14I Drop Test

STORAGE REVOLUTION

S14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 4x faster than SATA III.
Furthermore, S14I can accommodate two more internal SSD SATA III drives to maximize the onboard storage.

VIEW EVERY DETAIL

The S14I sports a Full HD 1080p display and proprietary DynaVue® technology. With brightness enhanced up to 1,000 nits and light-filtering technology providing a high contrast ratio (CR) to eliminate reflection, every detail of imagery is delivered with the utmost clarity. The 10-point capacitive multi-touch panel has four Touch Modes (Glove, Stylus, Water, Finger), optimizing use of the device for both indoor and outdoor applications.

CONTINUOUS OPERATION ON THE GO

In the field, portability equals productivity. The S14I weighs only 2.3kg and is 33% slimmer than the previous generation.
Adding ultra-long battery life of 10 hours and battery swap capability to its mobile form factor, the S14I enables non-stop operation outside of the office.

S14I continuous operation

BEST-IN-CLASS CONNECTIVITY

A smart device knows how to communicate in every way, and the S14I says it all: It’s compatible with a full range of interfaces, and the media bay offers all the customized expansion you may need.
The unit leads the market with two digital and one analog video outputs; HDMI + VGA + USB Type-C DP; Smart card/CAC reader; optional PCMCIA or Express Card; and a RFID reader. Further customization options abound with up to two RS-232 serial ports, up to two RJ-45 LAN ports, and an optional Fischer connector.

DEDICATED GRAPHICS

The optional dedicated NVIDIA® GEFORCE® GTX1050 transforms the S14I into an ultimate solution for specific tasks such as graphics rendering, architectural illustrations and CAD applications. Only a discrete graphics card can give you the performance and reliability you need to fulfill the demanding job.

S14I nvidia dedicated graphics

VALUE-DRIVEN IN-VEHICLE SOLUTION

The S14I in-vehicle laptop is the computing solution that public safety professionals on the front lines can rely on – engineered to improve efficiency in the field with paperless documentation, real-time reporting, applications, communications, mapping, and more. The S14I delivers the features today’s professionals need, along with instant access to the department’s network, databases, and the real-time intelligence needed to keep communities safe.

S14I RUGGED LAPTOP ANATOMY

Specifications

Rugged Specs

MIL-STD-810H Certified4′ drop 26 faces, drop, shock, vibration, altitude, freeze/thaw, high/low temperature, temperature shock, humidity
Water and Dust ResistantIP53

Tech Specs

Display14.0” FHD (1920 x 1080)
Optional 1000 nits DynaVue® sunlight readable display without touch screen
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating SystemWindows® 11 Pro 64-bit
ProcessorsIntel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache
Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache
Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache
Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Intel® Core™ i3-1115G4 (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.1GHz, 6MB cache
Memory2 slots 8GB up to 64GB (2400-3200MHz DDR4)
Storage256GB NVME PCIE SSD
Optional 512GB/1TB/2TB PCIE SSD
Optional OPAL 2.0 SSD
Optional 2nd/3rd storage (SATA SSD)2
Graphicsi7/i5: Intel® Iris® Xe Graphics
i3: Intel® UHD Graphics
Optional NVIDIA® GEFORCE GTX 10501,8
CameraOptional integrated 2.0 MP web-cam with shutter design
Optional IR camera for Windows Hello2
AudioOptional integrated microphone3
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls
Media Bay
(One Option Only)
Optional DVD super multi
Optional 2nd battery
Optional media bay storage SSD2
Optional ExpressCard 54 x 1 or PCMCIA Type II x 11,2
Optional 2nd RJ-45 & 2nd serial port (RS232)1,2
I/O PortsUSB 3.2 Gen2 (type A) x 2
USB 3.2 Gen2 (type C) x 1 (support DP)
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
SD card (SDXC) x 1
10/100/1000 Ethernet (RJ-45) x 1
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232/RS422/RS485 : D-sub,9-pin) x 1
SIM card x 1
DC-In jack x 1
Optional smart card reader x 14
Optional docking connector (41-pin Pogo) x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Keyboard & Input2 user-definable keys (P1/P2)
RF Signal slide-switch
Standard membrane keyboard with optional LED backlight
Wireless & CommunicationsIntegrated 10/100/1000 Ethernet
Intel® Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Bluetooth® V5.2
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN
SecurityIntel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Stealth mode
Kensington lock
Optional smart card reader4
Optional Windows Hello2
Optional night vision mode5
Optional fingerprint scanner
Optional HF-RFID (NFC) reader2,4
PowerAC adapter : 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Main battery Li-Ion, 10.8V, 4700mAh, 10 hours6
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 10 hours6
Optional bridge battery : 5 minutes swap time7
Dimension & Weight350 mm (L) x 282 mm (W) x 38 mm (H)8
2.3 kg8
Warranty3-year limited warranty standard
  1. Not available in combination with Intel® Core™ i3-1115G4.
  2. Contact your sales representative for feature availability.
  3. Integrated microphone is available only with web-cam.
  4. RFID/NFC and Smart card reader are mutually exclusive.
  5. Night vision mode is available only for sunlight readable display.
  6. Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
  7. The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.
  8. Weight varies with options. The dimension with optional discrete VGA is 61mm/2.4″ (H).

120W AC Adapter with power cord

3rd SSD for media bay

90W AC Adapter with power cord

Battery Charger - 2 bays

Battery Charger - 8 bays

Car Adapter (11-32V DC 90W)

Office Dock with AC Adapter

Removable 2nd Battery for media bay

Removable Super Multi DVD for media bay

Screen Protector Film S14I

Shoulder Strap (2 Point)

Spare 256GB-2TB PCIE SSD with canister

Spare Main Battery S14I

Spare Stylus & Tether for capacitive touch

USB 3.0 Docking Station

USB-C Docking Station

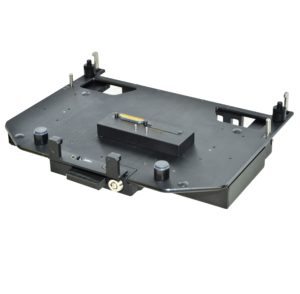

Vehicle Dock with Tri-RF Pass-through (PMT)

Vehicle Dock without Tri-RF Pass-through (PMT)
