S15 Rugged Laptop

THINNEST AND LIGHTEST IN ITS CLASS

Powered by Intel® 12th Generation processors, Durabook S15 offers the perfect blend of best-in-class performance, mobility and reliability, compared to commercial rugged laptop competitors. Featuring a 15.6” Full HD DynaVue® sunlight readable display, it also boasts a 98-key membrane keyboard with a dedicated numeric keypad for an enhanced visual and typing experience.   Designed with a 29.5mm-thin profile and a weight of just 2.6kg, the S15 is certified with four-foot drop resistance, IP5X and MIL-STG-810H. Additionally, extensive premium connectivity options of the highest specification, long-life battery up to 12 hours and an ergonomic hard handle for easy carrying make the S15 the ideal business laptop for field workers and professionals in both indoor and outdoor environments.

INCREDIBLY THIN, LIGHT AND POWERFUL

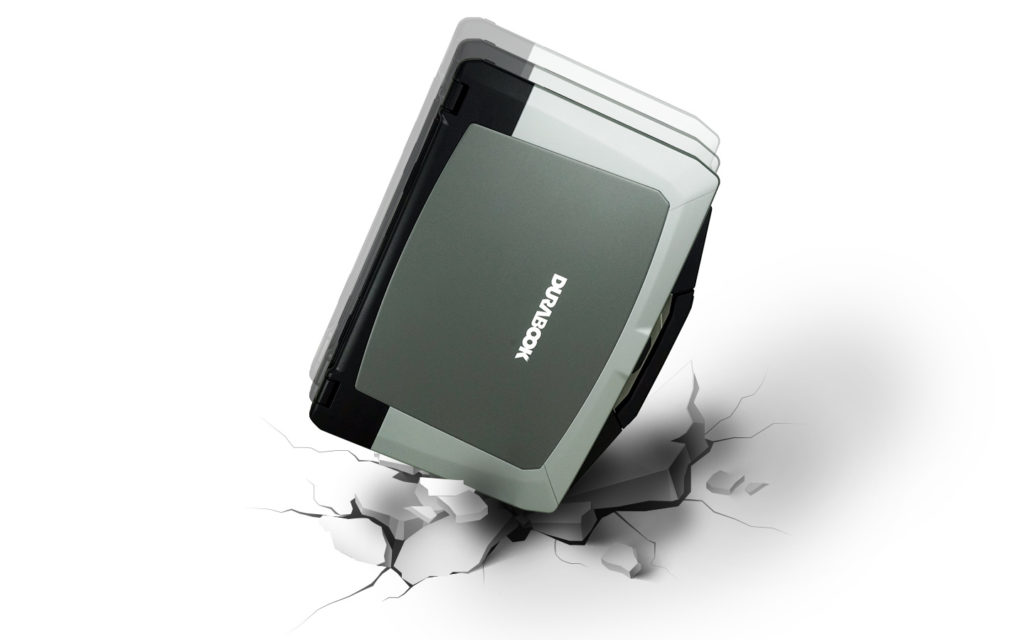

Running on Intel® 12th Generation CPUs, the S15 redefines the rugged laptop in its class. With mobility and high durability in mind, the S15 features a lightweight design with a 29.5mm-thin profile and a weight of just 2.6kg. It can withstand a 4-foot drop and is certified with IP5X and MIL-STD-810H for reliability in the field.

ENHANCED VISUAL EXPERIENCE WITH 15.6-INCH

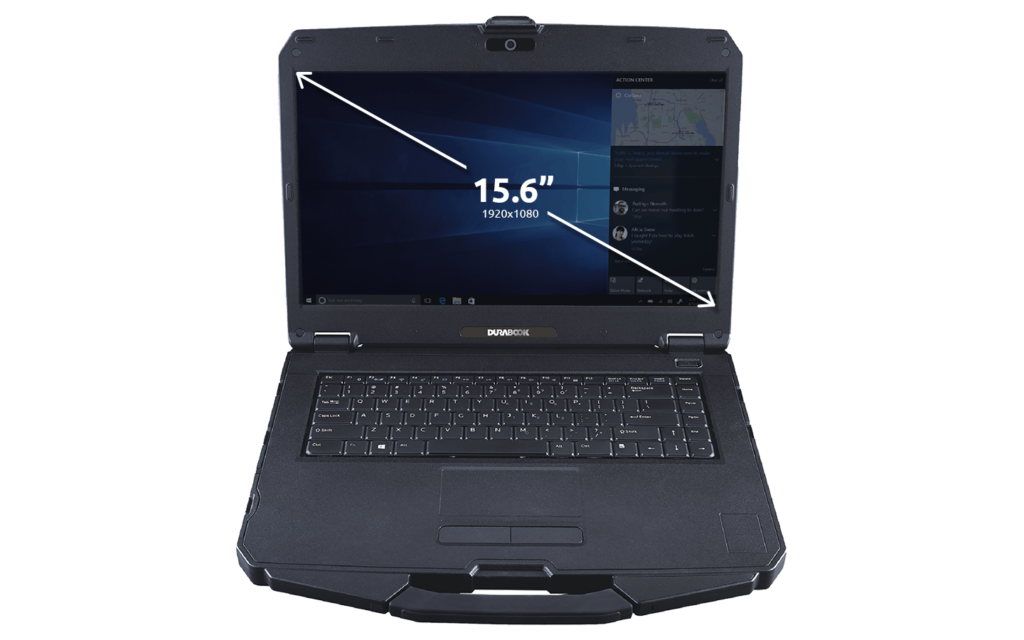

The S15 comes with a 15.6” Full HD (1920×1080) DynaVue® sunlight readable display of up to 1,000 nits that reveals every visual image detail at a glance. Featuring Intel® Iris® Xe graphics, it delivers speed, efficiency and the discrete-level graphics that mobile professionals demand. With the option of a dedicated NVIDIA® Quadro T1000, the S15 can be transformed into an ultimate solution for specific tasks, such as graphics rendering and CAD applications.

PERFECT DESIGN FOR MOBILITY

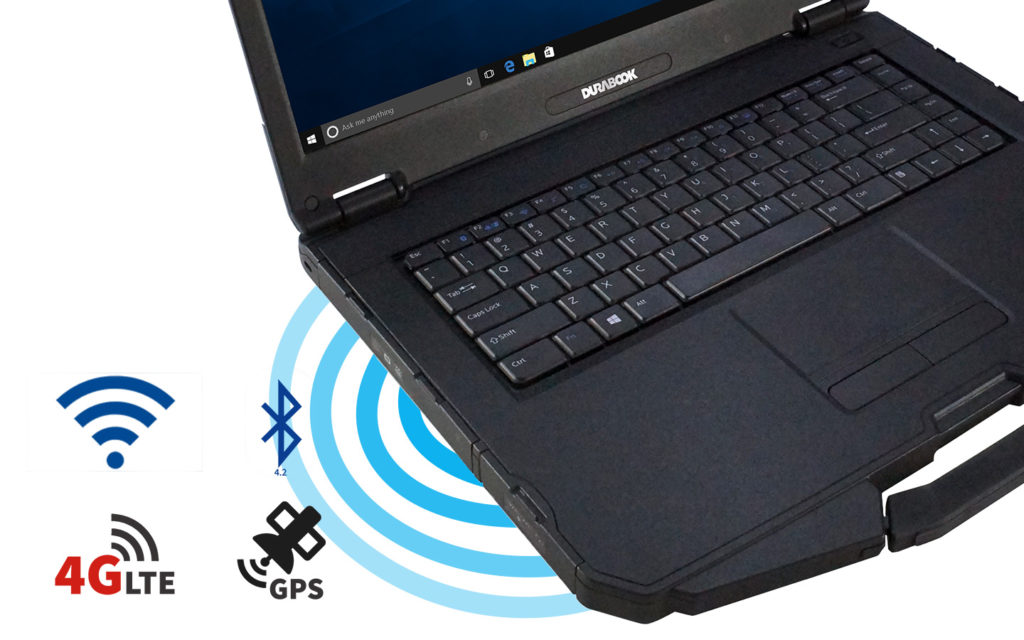

The S15 offers superior mobility and connectivity in the field and comes with cellular options of 4G LTE or 5G, Bluetooth® V5.3 and Wi-Fi 6E communication for seamless connectivity. With optional built-in GPS it provides accurate location tracking and geographic overviews for remote workers. Equipped with a long-life battery, it can operate for up to 12 hours without any downtime. S15 also features an optional bridge battery, allowing users to swap batteries in the field.

BEYOND A WORKSTATION

Data management is more critical than ever. The S15 can be equipped with up to three storage drives, which means that it can be transformed into a workstation, allowing the S15 to support RAID 0 and RAID 1. Instead of an optical disk drive, the media bay can be turned into an ExpressCard 54 slot, offering a wider range of uses.

SUPERB CONNECTIVITY & SECURITY

Various built-in connections are essential in any rugged laptop. The S15 offers multiple connection ports, allowing users to connect easily wherever the work is. It comes with Thunderbolt 4, USB 3.2 Type-A/-C ports, HDMI interface and VGA port. In addition, nano SIM card slot, microSD card slot, RJ-45 and RS-232 port are all included in the package. The S15 features advanced security features. These include a range of multi-factor authentication options, such as Windows Hello webcam, RFID/NFC, smartcard and fingerprint readers.

MAXIMUM PRODUCTIVITY IN THE FIELD

The S15 boasts a 98-key membrane keyboard with a dedicated numeric keypad and optional LED backlight, saving users time and providing a better typing experience for diverse professional applications. Moreover, the compact S15 is designed with an ergonomic hard handle for easy carrying. The reinforced design of the handle allows users to carry the laptop with peace of mind.

VERSATILE EXPANDABILITY

Flexible expansion capability makes the S15 the ultimate device for specific applications. When equipped with an optional dedicated graphics card, it transforms into the perfect solution for unique tasks such as graphics rendering, architectural illustrations and CAD programs. Additionally, the S15 can be configured with a 2nd RJ-45 and a 2nd RS-232 port, providing versatile connectivity to meet the demands of an ever-evolving mobile work environment.

S15 RUGGED LAPTOP ANATOMY

Specifications

Rugged Specs

MIL-STD-810H certified (Drop, Shock, Vibration, Dust, Altitude, High/Low Temperature, Humidity)
4′ drop 26 faces
IP 5X certified
Aluminum-magnesium alloy chassis
Port covers
Removable quick-release battery
Optional sunlight readable display
Optional swappable battery technology

Tech Specs

Display15.6” FHD (1920 x1080)
Optional 1000 nits DynaVue® sunlight readable display
Operating SystemWindows® 11 Pro 64-bit
ProcessorsIntel® Core™ i7-1255U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores)
Intel® Core™ i5-1235U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores)
Memory2 slots 8GB up to 64GB (4800 MHz DDR5)
Storage256GB NVMe PCIe SSD
Optional 512GB/1TB/2TB PCIe SSD
Optional 2nd storage M.2 SATA or NVMe PCIe SSD1
Optional 3rd storage M.2 SATA SSD1
GraphicsIntel® Iris® Xe Graphics
Optional NVIDIA® Quadro T10001
CameraOptional integrated 2.0MP web-cam
Optional 5.0MP IR camera for Windows Hello1
AudioIntegrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls
Media Bay
(One Option Only)
Optional DVD super multi
Optional 3rd SSD1
Optional ExpressCard 541,3
Expansion BoxOptional discrete VGA1
Optional 2nd RJ45 x 1 + 2nd RS232 x 11,3
I/O PortsThunderbolt 4 x 1
USB 3.2 Gen2 (type A) x 2
USB 3.2 Gen2 (type C) x 1 (support DP)
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 1
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232, RS422 and RS485 : D-sub,9-pin) x 1
Nano SIM card x 1
DC-In jack x 1
Optional docking connector (41-pin Pogo) x 1
Optional smart card reader x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Keyboard & Input2 user-definable keys (P1/P2)
Standard membrane keyboard with numeric keypad and optional LED backlight
Wireless & CommunicationsIntegrated 10/100/1000 Ethernet
Intel® Wi-Fi 6E AX211 (802.11ax)
Bluetooth® V5.3
Optional GPS and 4G LTE multi-carrier mobile broadband
Optional 5G1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
SecurityIntel® vPro™ Technology
Secured-core PC1
TPM 2.0
NIST BIOS compliant
Stealth mode
Kensington lock
Optional smart card reader
Optional Windows Hello1
Optional fingerprint scanner
Optional night vision mode2
Optional LF/HF-RFID (NFC) reader
PowerAC adapter: 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Main battery Li-Ion, 7.4V, 7600mAh, 12 hours4
Optional bridge battery: 5 minutes swap time5
Dimension & Weight375 mm (L) x 273 mm (W) x 29.5 mm (H)
2.6 kg
Warranty3-year limited warranty standard
  1. Contact your sales representative for feature availability.
  2. Night vision mode is available only for sunlight readable display.
  3. ExpressCard 54 and expansion module (RJ45 & RS232) are mutually exclusive.
  4. Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
  5. The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.

120W AC Adapter with power cord

3rd SSD for media bay S15

90W AC Adapter with power cord

Car Adapter (11-32V DC 90W)

ExpressCard 54 for media bay

Office Dock S15

Removable Super Multi DVD for media bay S15

Spare Main Battery S15

USB 3.0 Docking Station

USB-C Docking Station
