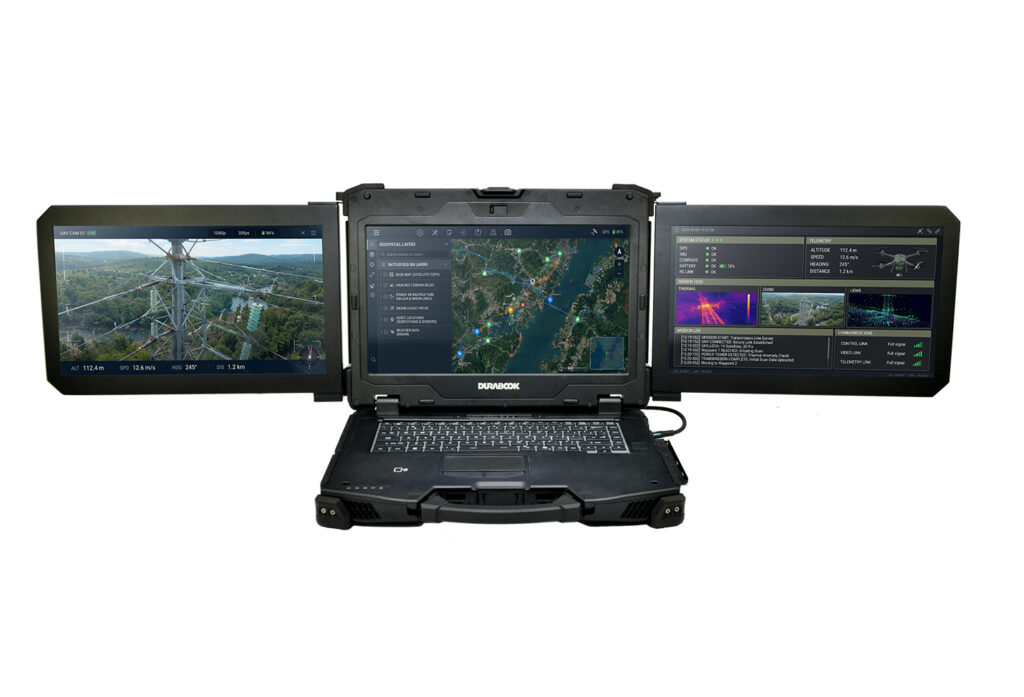

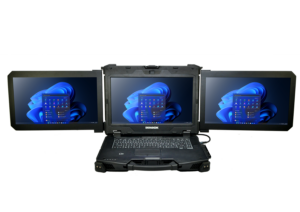

Z14I-DX3 Rugged
Triple-Screen Workstation
Three Screens. Edge AI. One Command Workspace.
Integrated Triple-Screen Workspace
Three 14-inch Full HD displays keep maps, video and operational data in view.
Workstation-Class Edge AI
Intel® Core™ Ultra processing and optional NVIDIA® graphics support compatible AI workloads.
Portable & Deployable
Both expansion displays stay attached, folding inward for transport between operating locations.
Bring a complete command workspace into the field. The Durabook Z14I-DX3 extends a fully rugged laptop into a portable rugged workstation for mobile command and field operations. Its integrated triple-display system and Edge AI computing support video, mapping, telemetry, communications and reporting, while comprehensive I/O and configuration options for PCIe expansion, dedicated graphics or RAID storage adapt the system to operational requirements.
SEE MORE. INSTANT RESPONSE.
EXPANDED TRIPLE-SCREEN WORKSPACE

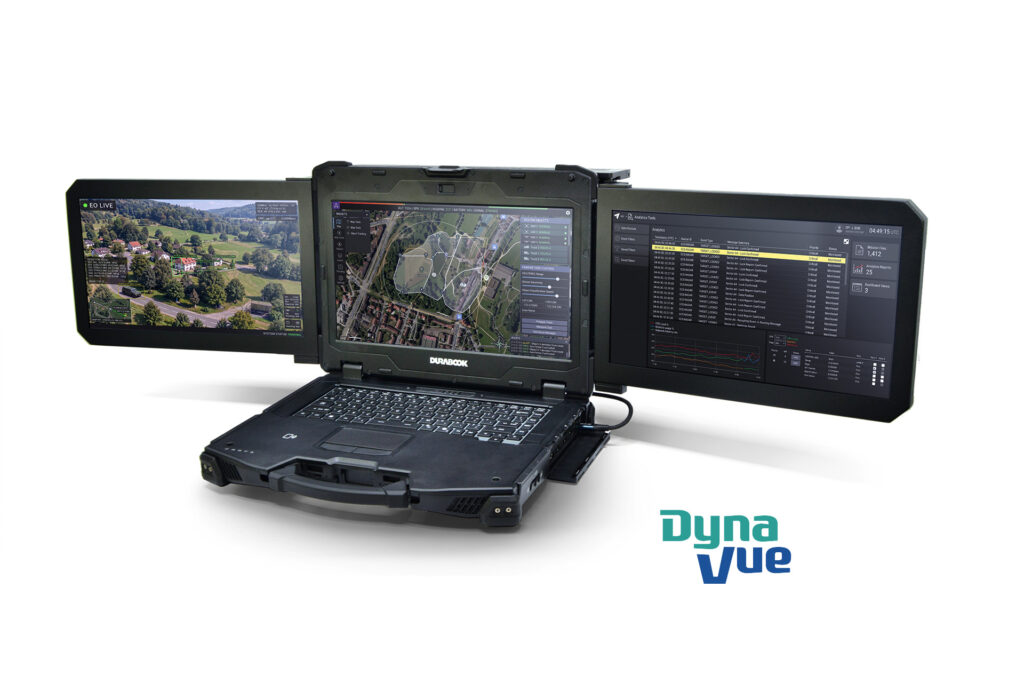

Keep live video, tactical maps, telemetry and command applications visible together across three 14-inch Full HD (1920 × 1080) displays. Each screen can present a separate application or data source, allowing operators to monitor, compare and report in parallel with less window switching.
DynaVue® sunlight-readable technology and up to 1,200 nits help the three 14-inch Full HD displays maintain clarity in bright or changing light. Each screen supports finger, water, glove and stylus touch modes for different operating conditions.
Each expansion display includes its own standalone OSD controls, allowing brightness and contrast to be adjusted independently for each task. Thermal imagery, tactical maps and live video can therefore operate at different viewing levels.
ANALYSE MORE. ACT SMARTER.
WORKSTATION-CLASS AI PERFORMANCE

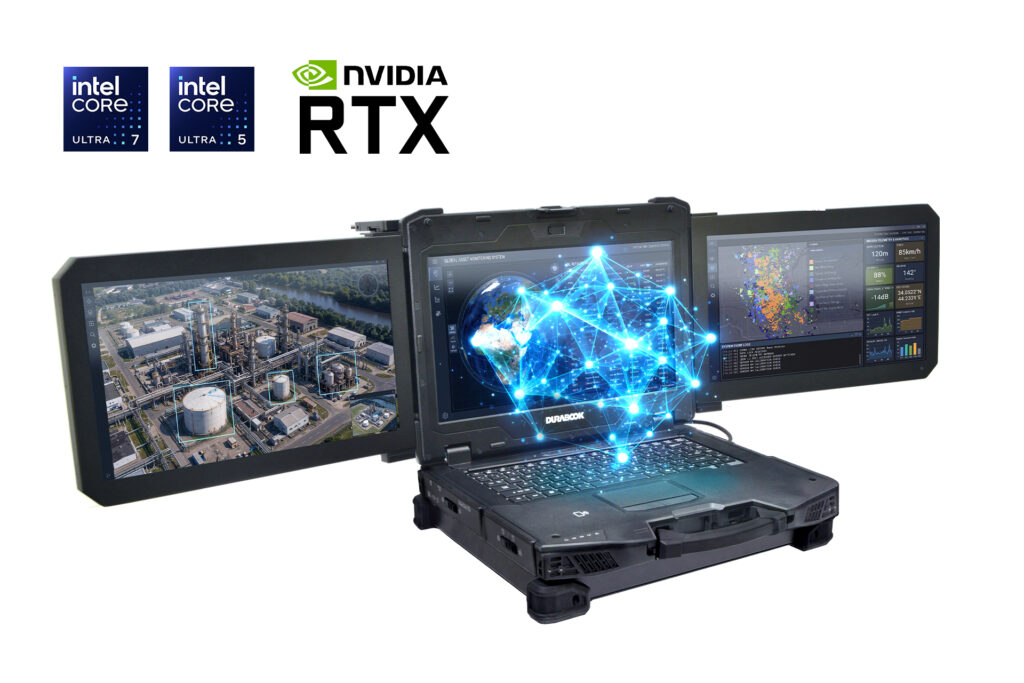

Bring Edge AI computing to imagery, video and operational data. Optional NVIDIA® RTX™ 5000 Ada graphics accelerate compatible AI workloads and real-time mission analysis at the edge, including image recognition and video analysis, while also supporting demanding GIS and 3D visualization applications. This enables processing at the point of operation where cloud access may be limited.
Intel® Core™ Ultra 5 125U or Core™ Ultra 7 155U processors combine CPU performance, Intel® Graphics and an integrated Intel® AI Boost NPU. The NPU accelerates supported AI tasks, leaving CPU and graphics resources available for other operational applications. Together, these computing resources support analysis and multitasking across the expanded workspace.
FOLD TO MOVE. UNFOLD TO COMMAND.
EASY DEPLOYMENT WITH RUGGED PROTECTION

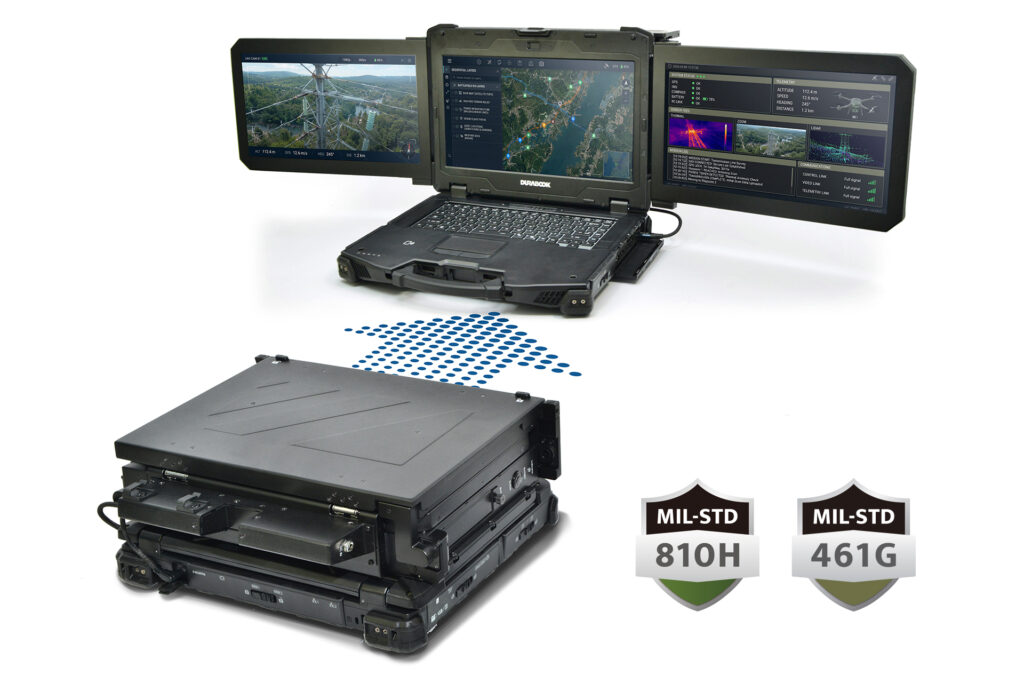

Move a complete triple-display workspace between operating locations with fewer separate components to manage. Both expansion displays fold inward and remain attached to the main unit during transport, setup and teardown. Integrated display connections eliminate separate display cables, and one AC adapter powers the system.
Fully rugged construction supports deployment in command vehicles, temporary operations centers, emergency-response locations and industrial environments. Certified to MIL-STD-810H and MIL-STD-461G, with an operating temperature range of −29°C to 63°C (−20°F to 145°F), the Z14I-DX3 brings an integrated command workspace and protection for demanding field conditions together in one rugged mobile workstation.
PLUG IN. TAKE CONTROL.
COMPREHENSIVE I/O & FIELD CONNECTIVITY

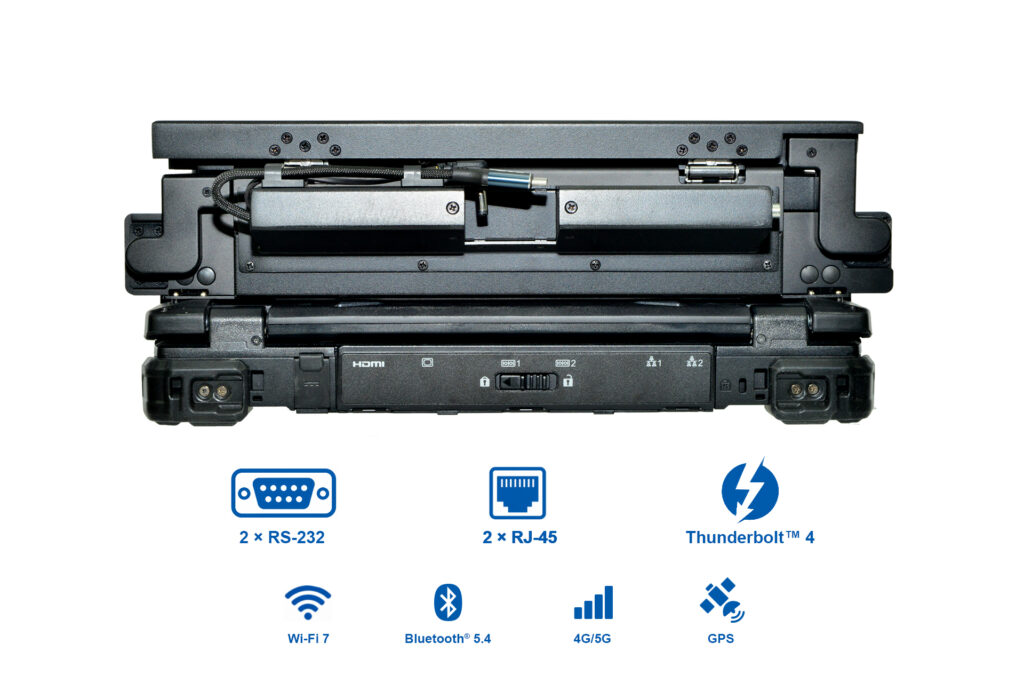

Connect peripherals, specialized sensors and legacy field equipment through integrated interfaces including Thunderbolt™ 4, dual Ethernet and dual serial ports. These connections support integration with equipment and networks already used in vehicles, command centers and industrial operations.
Wi-Fi 7 and Bluetooth® 5.4 support local wireless connectivity, with optional 4G/5G for cellular communications and optional GPS for positioning applications. TPM 2.0 and Smart Card/CAC authentication support device security and access control, with optional biometric authentication for additional access requirements.
TAILORED TO THE MISSION.
VERSATILE CONFIGURATION
Adapt the system to specialized requirements through hardware customization and expansion options. The Z14I-DX3’s expansion box can accommodate two PCIe interface slots, a dedicated graphics card or a storage extension supporting RAID 0/1/5/10 configurations, enabling applications including portable server deployments.

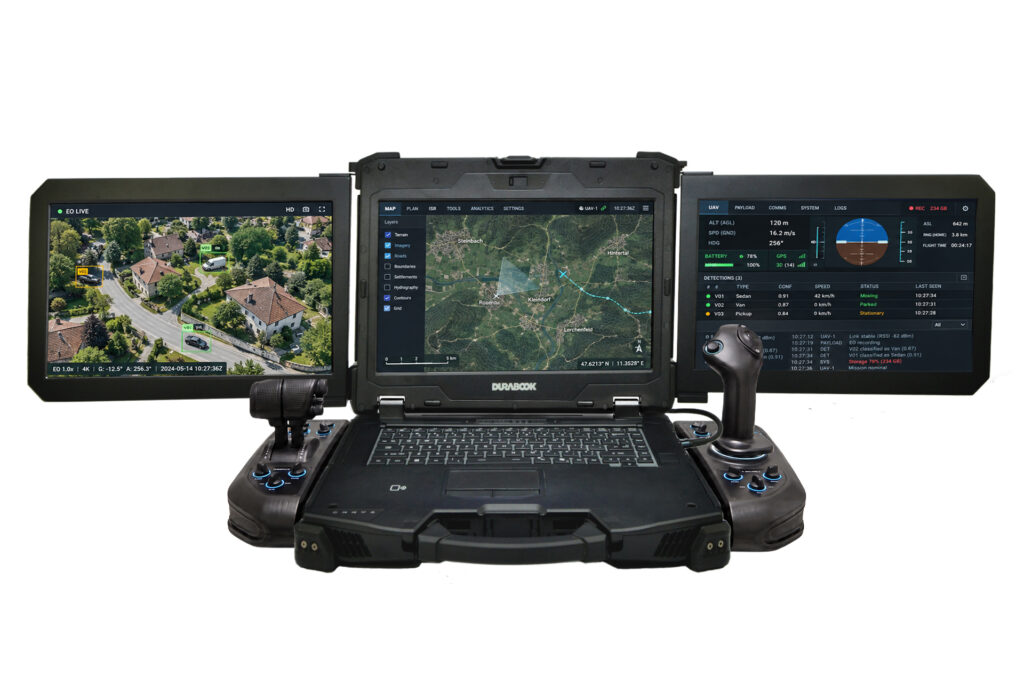

Custom integration of joysticks, switches and control interfaces can also turn the system into a ground control station, combining physical controls with a triple-screen workspace for unmanned system operations. Media-bay choices, removable batteries and quick-release storage provide further flexibility for power, storage and compatibility requirements.
Specifications
Rugged Specs
| MIL-STD 810H certified (Shock, Vibration, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation) | |
| MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) | |
| Magnesium alloy chassis Port covers Removable quick-release battery Two removable quick-release storage drives Sunlight readable display |
Tech Specs
| Display | 3x 14.0” FHD (1920 x1080) 1200 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus programmable function |
| Operating System | Windows® 11 Pro 64-bit |
| Processors | Intel® Core™ Ultra 7 165U (12MB Cache, up to 4.9 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) Intel® Core™ Ultra 7 155U (12MB Cache, up to 4.8 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) Intel® Core™ Ultra 5 135U (12MB Cache, up to 4.4 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) Intel® Core™ Ultra 5 125U (12MB Cache, up to 4.3 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) |
| Memory | 2 slots 16GB up to 64GB (5600MHz DDR5) |
| Storage | 256GB NVME PCIE SSD Optional 512GB/1TB/2TB PCIE SSD Optional OPAL 2.0 SSD Optional 2nd storage NVME PCIE SSD Optional 3rd storage SATA SSD1 |
| Graphics | Intel® Graphics Optional NVIDIA® RTX A5001,3 Optional NVIDIA® RTX 3500 Ada with 12GB GDDR6 memory1,3 Optional NVIDIA® RTX 5000 Ada with 16GB GDDR61,3 |

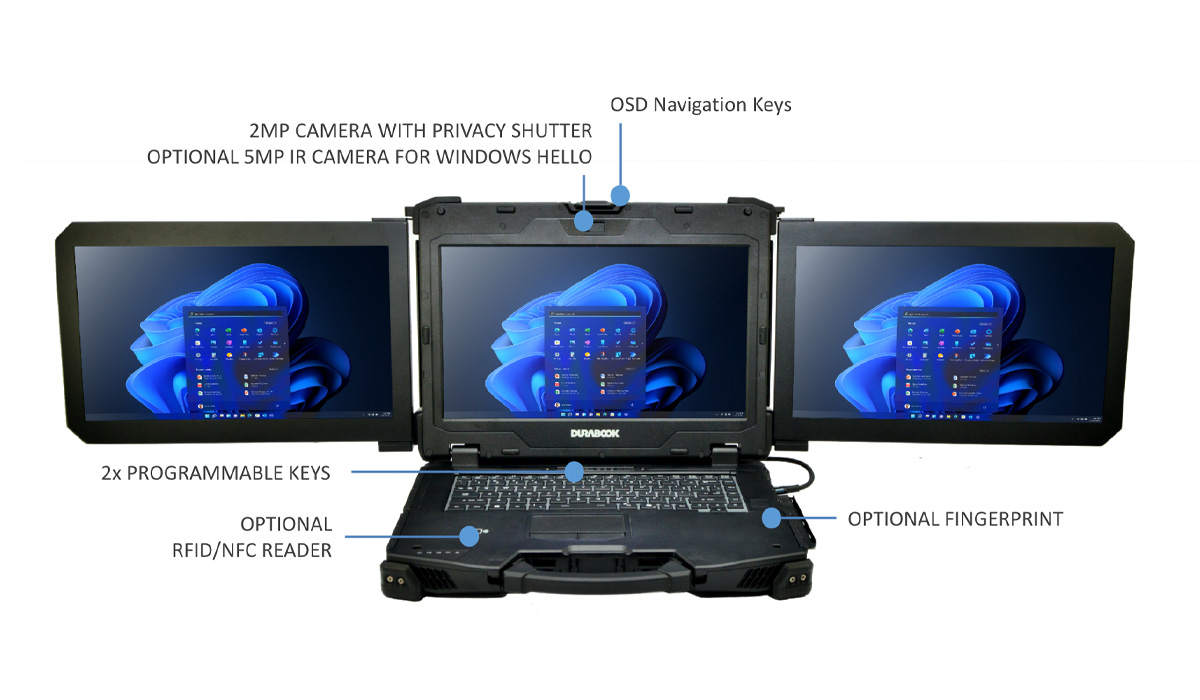

| Camera | Integrated 2.0 MP web-cam with shutter design Optional 5.0 MP IR camera for Windows Hello1 |
| Audio | Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |

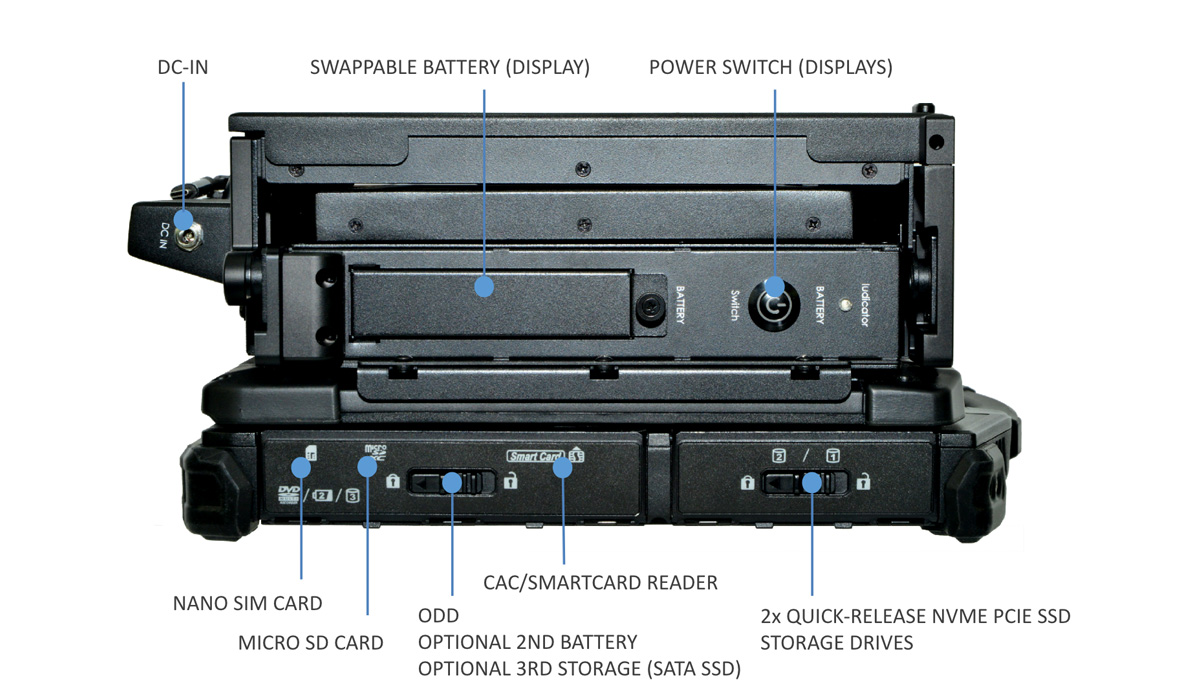

| Media Bay (One Option Only) | Optional DVD super Multi Optional 2nd battery Optional SATA SSD |
| Expansion Slots | Optional PCI-Express 3.0 (2 slots)1,2 Optional discrete VGA1,2 Optional storage extension with RAID 0/1/5/101,2 |

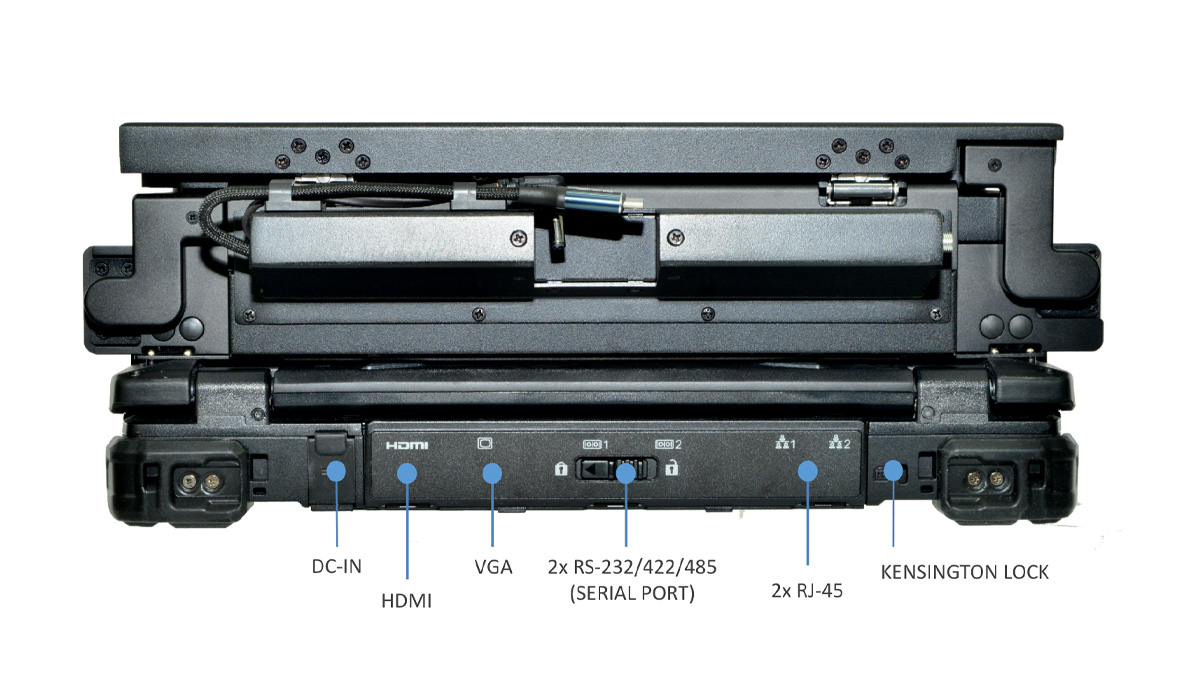

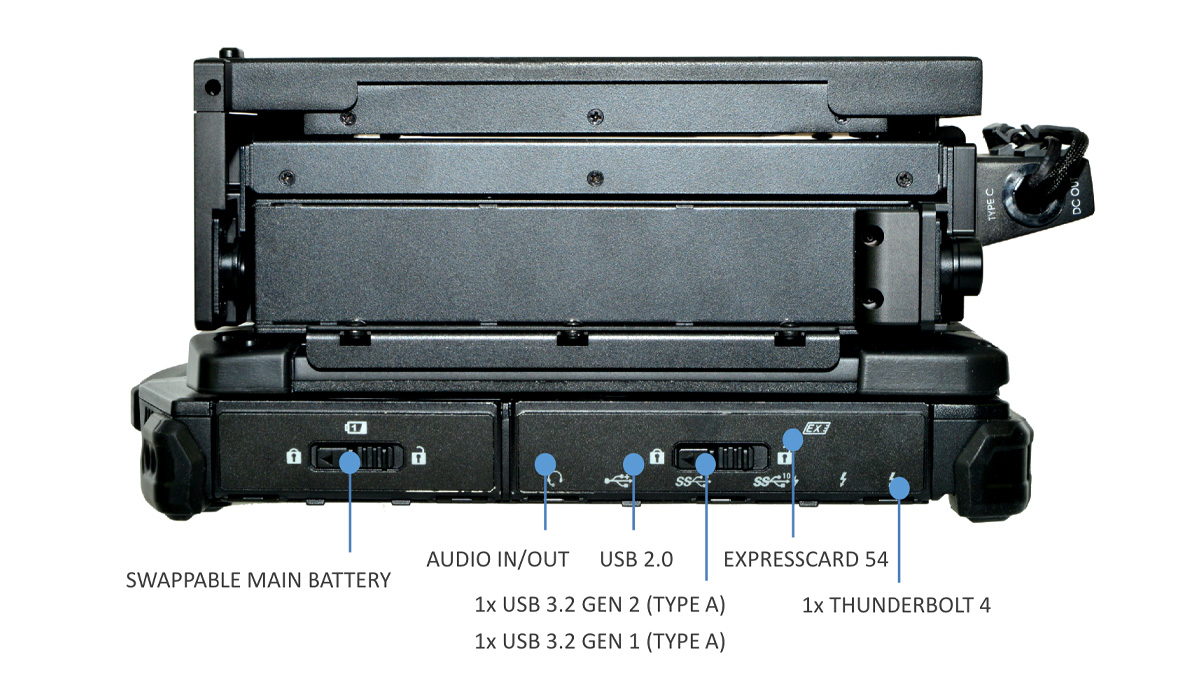

| I/O Ports | Thunderbolt 4 (type C) x 1 USB 3.2 Gen2 (type A) x 1 USB 3.2 Gen1 (type A) x 1 USB 2.0 (type A) x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 10/100/1000 Ethernet (RJ45) x 2 VGA port (D-sub,15-pin) x 1 HDMI port (type A) x 1 Serial port (RS232/RS422/RS485: D-sub,9-pin) x 2 Docking connector (41-pin Pogo) x 1 Dual SIM (Nano SIM & eSIM) Smart card reader x 1 ExpressCard 54 x 1 DC-In jack x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Keyboard & Input | 2 user-definable keys (P1/P2) Standard membrane keyboard with LED backlight |
| Communications | Integrated 10/100/1000 Ethernet Intel® Wi-Fi 7 BE200 (802.11 be) Bluetooth® V5.4 Optional dedicated GPS module (UBLOX-NEO-M9N) Optional 4G LTE multi-carrier mobile broadband Optional 5G Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Security | Intel® vPro™ Technology Secured-Core PC1 TPM 2.0 NIST BIOS compliant Easy removable SSD Smart card reader Stealth mode Night vision mode Kensington lock Optional Windows Hello1 Optional fingerprint scanner Optional LF/HF-RFID (NFC) reader1 |
| Power | AC adapter: 100-240V, 50Hz-60Hz, 210W Main battery Li-Ion, 10.8V, 6900mAh Optional 2nd battery Li-Ion 10.8V, 4700mAh Additional battery for screens : Li-Ion, 14.4V, 6700mAh |
| Environment | Temperature Operating: -29°C ~ 63°C / -20°F ~ 145°F Storage: -51°C ~ 71°C / -60°F ~ 160°F Humidity: 5% ~ 95% |
| Dimension & Weight | 391 mm (L) x 298 mm (W) x 137.5 mm (H)2 9.8 kg2 |
| Warranty | 3-year limited warranty standard |
- Contact your sales representative for feature availability.
- Mutually exclusive options.
- For optimal graphics performance, an upgrade of the system memory to 32GB or higher and the SSD capacity to 512GB or higher is recommended.
