S14I Rugged Laptop
One Step Above Semi Rugged
The all-new Durabook S14I features the latest 11th Generation Intel® CPUs and class-leading 4’ drop spec/IP53 rating, pushing semi-rugged devices to a whole new level. The S14I is engineered to combine military-grade durability, field-worker functionality, computing performance, and long battery life for non-stop use, making it suitable for use in locations where rain or dust may be a regular occurrence. For workers in today’s challenging and versatile working environments, the S14I rugged laptop is truly in a class of its own.
HIGH PERFORMANCE WITHOUT SACRIFICE
The S14I features a significant CPU upgrade with Intel® Tiger Lake 11th generation platform, using Intel’s 10nm processor technology. This device comes with integrated Intel® Iris Xe graphics, and for professionals who use intensive graphic computing, it can be upgraded to an optional standalone NVIDIA GeForce® GTX1050.
With the ultra-high-speed data transmission capability of Intel® Wi-Fi 6 AX201 with max. speed of 2.4Gbps and Bluetooth® V5.2, all information is instantly synced and fed back to the data control center.
EXCEPTIONAL DURABILITY & SECURITY
The S14I is built with a robust mechanical design and rigorously tested components. It meets the standards of MIL-STD-810H; withstands up to a 4-foot drop; and boasts an IP53 rating. This tough yet elegant rugged laptop breaches the boundary between semi-rugged and fully-rugged devices.
It now includes Windows Hello encrypted biometrics, a more secure, user-friendly and faster way of accessing the Window® 10 OS.
STORAGE REVOLUTION
S14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 4x faster than SATA III.
Furthermore, S14I can accommodate two more internal SSD SATA III drives to maximize the onboard storage.
VIEW EVERY DETAIL
The S14I sports a Full HD 1080p display and proprietary DynaVue® technology. With brightness enhanced up to 1,000 nits and light-filtering technology providing a high contrast ratio (CR) to eliminate reflection, every detail of imagery is delivered with the utmost clarity. The 10-point capacitive multi-touch panel has four Touch Modes (Glove, Stylus, Water, Finger), optimizing use of the device for both indoor and outdoor applications.
CONTINUOUS OPERATION ON THE GO
In the field, portability equals productivity. The S14I weighs only 5.07 lbs and is 33% slimmer than the previous generation.
Adding ultra-long battery life of 10 hours and battery swap capability to its mobile form factor, the S14I enables non-stop operation outside of the office.
BEST-IN-CLASS CONNECTIVITY
A smart device knows how to communicate in every way, and the S14I says it all: It’s compatible with a full range of interfaces, and the media bay offers all the customized expansion you may need.
The unit leads the market with two digital and one analog video outputs; HDMI + VGA + USB Type-C DP; Smart card/CAC reader; optional PCMCIA or Express Card; and a RFID reader. Further customization options abound with up to two RS-232 serial ports, up to two RJ-45 LAN ports, and an optional Fischer connector.

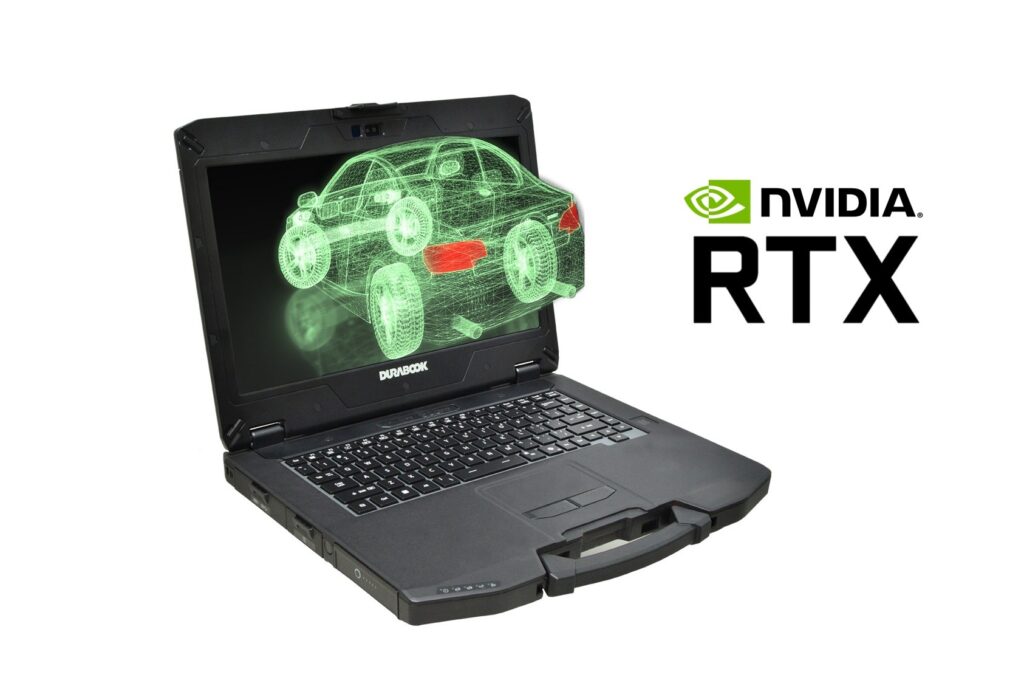

DEDICATED GRAPHICS
The optional dedicated NVIDIA® GEFORCE® GTX1050 transforms the S14I into an ultimate solution for specific tasks such as graphics rendering, architectural illustrations and CAD applications. Only a discrete graphics card can give you the performance and reliability you need to fulfill the demanding job.

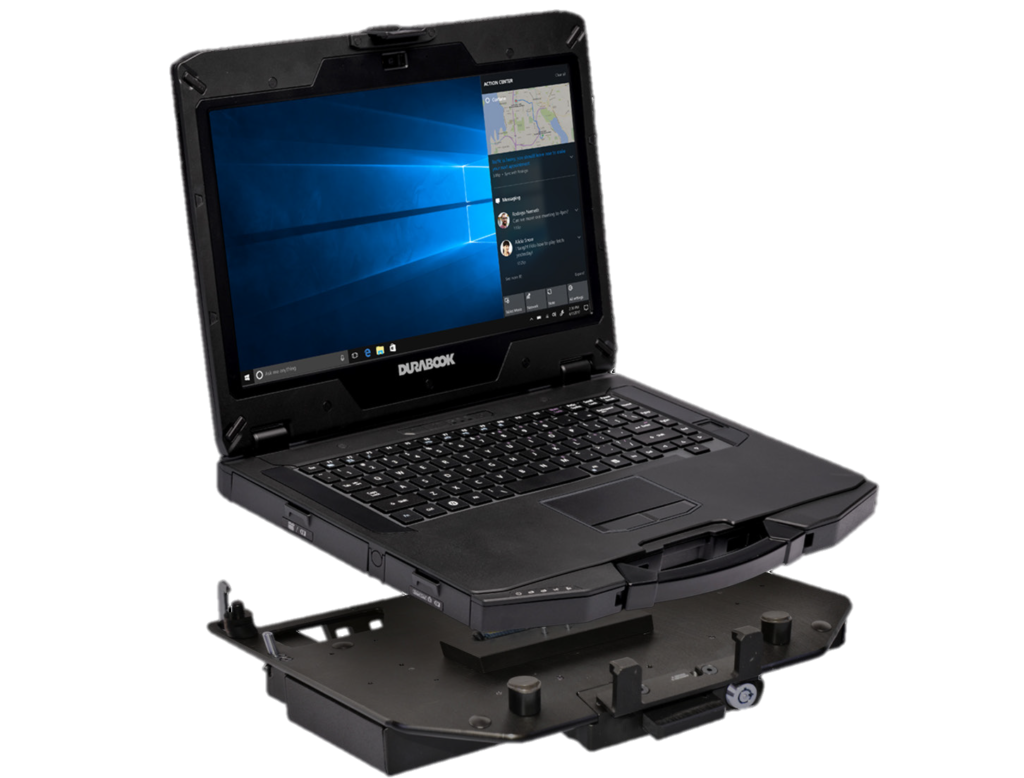

VALUE-DRIVEN IN-VEHICLE SOLUTION
The S14I in-vehicle laptop is the computing solution that public safety professionals on the front lines can rely on – engineered to improve efficiency in the field with paperless documentation, real-time reporting, applications, communications, mapping, and more. The S14I delivers the features today’s professionals need, along with instant access to the department’s network, databases, and the real-time intelligence needed to keep communities safe.
Specifications
Rugged Specs
| MIL-STD-810H Certified | 4′ drop 26 faces, drop, shock, vibration, altitude, freeze/thaw, high/low temperature, temperature shock, humidity |
| Water and Dust Resistant | IP53 |
Tech Specs
| Display | 14.0″ FHD (1920 x1080) Optional 1000 nits DynaVue® sunlight readable display without touch screen Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus programmable function |
| Operating System | Windows® 11 Pro 64-bit |
| Processors | Intel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache Intel® Core™ i3-1115G4 (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.1GHz, 6MB cache |
| Memory | 2 slots 8GB up to 64GB (2400-3200MHz DDR4) |
| Storage | 256GB NVME PCIE SSD Optional 512GB/1TB/2TB PCIE SSD Optional OPAL 2.0 SSD Optional 2nd/3rd storage (SATA SSD)2 |
| Graphics | i7/i5: Intel® Iris® Xe Graphics i3: Intel® UHD Graphics Optional NVIDIA® GEFORCE GTX 10501,8 |
| Camera | Optional integrated 2.0 MP web-cam with shutter design Optional IR camera for Windows Hello2 |
| Audio | Optional integrated microphone3 Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |
| Media Bay (One Option Only) | Optional DVD super multi Optional 2nd battery Optional media bay storage SSD2 Optional ExpressCard 54 x 1 or PCMCIA Type II x 11,2 Optional 2nd RJ-45 & 2nd serial port (RS232)1,2 |
| I/O Ports | USB 3.2 Gen2 (type A) x 2 USB 3.2 Gen2 (type C) x 1 (support DP) USB 2.0 (type A) x 1 Audio in/out (combo jack) x 1 SD card (SDXC) x 1 10/100/1000 Ethernet (RJ-45) x 1 VGA port (D-sub,15-pin) x 1 HDMI port (type A) x 1 Serial port (RS232/RS422/RS485 : D-sub,9-pin) x 1 SIM card x 1 DC-In jack x 1 Optional smart card reader x 14 Optional docking connector (41-pin Pogo) x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Keyboard & Input | 2 user-definable keys (P1/P2) RF Signal slide-switch Standard membrane keyboard with optional LED backlight |
| Wireless & Communications | Integrated 10/100/1000 Ethernet Intel® Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax) Bluetooth® V5.2 Optional dedicated GPS module (UBLOX-NEO-M8N) Optional 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Security | Intel® vPro™ Technology (per CPU options) TPM 2.0 NIST BIOS compliant Easy removable SSD Stealth mode Kensington lock Optional smart card reader4 Optional Windows Hello2 Optional night vision mode5 Optional fingerprint scanner Optional HF-RFID (NFC) reader2,4 |
| Power | AC adapter : 100-240V, 50Hz-60Hz, 90W Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA Main battery Li-Ion, 10.8V, 4700mAh, 10 hours6 Optional 2nd battery Li-Ion 10.8V, 4700mAh, 10 hours6 Optional bridge battery : 5 minutes swap time7 |
| Green Design | RoHS/REACH compliant, EPEAT Bronze |
| Certifications | US: FCC, DOC+ FCC ID EU: CE |
| Dimension & Weight | 13.78” (W) x 11.1″ (D) x 1.5” (H)8 5.07 lbs8 |
| Warranty | 3-year limited warranty standard |
- Not available in combination with Intel® Core™ i3-1115G4.
- Contact your sales representative for feature availability.
- Integrated microphone is available only with web-cam.
- RFID/NFC and Smart card reader are mutually exclusive.
- Night vision mode is available only for sunlight readable display.
- Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
- The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.
- Weight varies with options. The dimension with optional discrete VGA is 2.4″ (H).
Accessories
120W AC Adapter with power cord
3rd SSD for media bay
90W AC Adapter with power cord
Battery Charger - 2 bays
Battery Charger - 8 bays
Car Adapter (11-32V DC 90W)
LIND 12-16V Car Adapter with 180 degree connector & 72" cable-bare wire
LIND 12-16V Car Adapter with cigarette plug
LIND 12-32V Car Adapter with bare wire
LIND 12-32V Car Adapter with cigarette plug

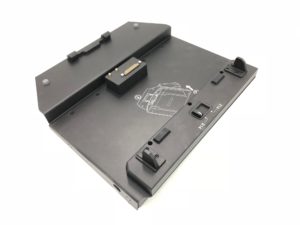

Office Dock with AC Adapter
Removable 2nd Battery for media bay
Removable Super Multi DVD for media bay
Screen Protector Film S14I
Shoulder Strap (2 Point)
Spare 256GB-2TB PCIE SSD with canister
Spare Main Battery S14I
Spare Stylus & Tether for capacitive touch
USB 3.0 Docking Station
USB-C Docking Station

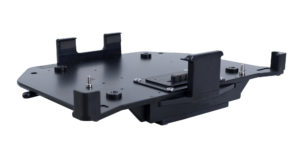

Vehicle Dock with Tri-RF Pass-through (PMT)
Vehicle Dock without Tri-RF Pass-through (PMT)
