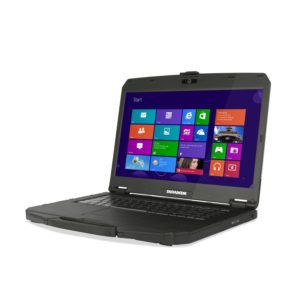

S15AB Laptop

LIGHTEST AND THINNEST 15" SEMI-RUGGED LAPTOP

With the largest 15.6” Full HD display in its class, combined with Windows 10 Pro, the S15AB will enhance productivity and multitasking abilities. The 2nd Generation S15AB  is just 1.5” thick and weighing only 5.76 lbs. is designed for a mobile workforce with IP5X and MIL-STG-810G certifications. The S15AB features an 8th Generation Intel® processor to handle data intensive tasks and includes an optional multi-drive storage configuration, making the S15AB into a highly-mobile working server.
Dust Resistant:
IP5X
Spill Resistant:
Spill-proof keyboard and touchpad
MIL-STD-810G Certified
3′ Drop, Shock, Vibration, High/Low Temperature, Bench Handling, Humidity, Altitude
Display
15.6” FHD (1920×1080)
Processor
Windows® 10 Pro with Windows® 7 Pro Downgrade¹
Intel® Core™ i7-8565U (8th Gen) 1.8GHz processor with Turbo Boost Technology up to 4.6GHz, 8MB cache
Intel® Core™ i5-8265U (8th Gen) 1.6GHz processor with Turbo Boost Technology up to 3.9GHz, 6MB cache
Memory
2 slots 8GB up to 32GB (2400MHz DDR4)
Storage
■ 256GB SSD
■ Optional 512GB/1TB SSD
Media
Super Multi DVD Drive
Graphics
Intel® UHD Graphics 620
Audio
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls
Webcam
Integrated 2MP Webcam
Keyboard & Pointing Device
■ 86-key US Keyboard with Windows Key
■ LED Backlit Keyboard¹
■ Touchpad with 2 buttons
I/O Ports
■ USB 3.1 Gen1 Type A x 2
■ USB 3.1 Gen2 Type A x 1 (speed up to 10Gbps)
■ USB 3.1 Type C x 1
■ Audio in/out (combo jack) x 1
■ SD card (SDXC) x 1
■ 10/100/1000 Ethernet (RJ-45) x 1
■ VGA port (D-sub,15-pin) x 1
■ HDMI port (type A) x 1
■ Serial port (RS-232 : D-sub,9-pin) x 1
■ SIM card x 1
■ Smart card reader x 12
■ DC-In jack x 1

Expansion Slots
SD Card Reader (micro-SDXC)
Communications
■ Gigabit Ethernet, 10/100/1000 base-T
■ Intel® Dual Band Wireless-AC 7265 802.11ac, Bluetooth 5.0
■ 4G-LTE multi-carrier mobile broadband¹

Security
■ Kensington Lock
■ TPM 2.0
■ Computrace® Ready
■ SmartCard/CAC Reader
■ Optional RFID1
Power
■ Main battery Li-Ion, 7.4V, 7600mAh, 13.5 hours4
■ AC Adapter: 100V – 240V; 50/60Hz; 65W; 19V
Green Designs
RoHS / REACH / Energy Star 6.1 compliant
ErP, WEEE
Certifications
FCC, DOC, CUS, CE, CB
Dimension & Weight
■ 14.76” (W) x 10.75” (D) x 1.16” (H) 5.73lbs / 2.6kg
■ 5.90 lbs/2.67 Kg³
Warranty
3-Year DURABOOK 2-D Warranty

1. Optional items
2. Battery Mark 4.0.1 Life Test Method (Battery life may vary with the product configuration, settings, usage patterns and operating environment)
3. Actual weight may vary with different configurations

65W AC Adapter (AC-D15TS-65)

THINNEST AND LIGHTEST IN ITS CLASS

S15AB Laptop is the lightest 15.6" rugged laptop in its class

The S15AB rugged laptop is a Best-In-Class with its 15.6″ display, weighing only 5.76lbs and measuring around 1.5″ thick. This semi-rugged laptop features world class performance, security, and robust I/O for your rugged computing needs.

MORE THAN BUSINESS RUGGED

Survived Temperature, Rain, Dust and Drop Testing

Extreme Temperature:
Operating Temperature -4~ 140°F
Storage Environment Temperature -40~160°F
IP5x: spill-proof keyboard
26 times 3’ drop
Magnesium Alloy A,B,C,D Parts

MORE CUSTOMIZABLE

Highly-Mobile Working Server

The ultra-customizable S15AB can be equipped with up to three storage drives and transformed into a working server to support mobile command centers and emergency responders with RAID 0 and RAID 1 capabilities.

S15AB SEMI-RUGGED MOBILE LAPTOP ANATOMY

we are rugged mobile

At Durabook, delivering mission-specialized technology solutions is our top priority. Whether you’re an end-user or channel partner, we collaborate with you, incorporating your feedback to bring innovative solutions to market. Superior rugged products and value are just a few reasons our clients choose Durabook.

DURABOOK 2-D WARRANTY PROGRAM

We have you covered with your 2-D protection plan. Enjoy three years of 360 degree protection against against drops, damage or deficiencies in performance. Our specialized service center team is on standby if you need us.
