Z14I Rugged Laptop

As Strong As It Gets. Boundless Customization.
Z14I Laptop

Combined with the latest 11th Generation Intel® Core™ processor and Iris® Xe graphics capabilities, the Z14I rugged laptop can handle data intensive tasks at speed. It has been built to withstand even the harshest of environments. Its IP65 rating, protecting against dust and water ingress, MIL-STD 810H certification and resistance up to six feet drop make the Z14I more rugged than other comparable devices on the market. The device has also been tested for explosive atmosphere, solar radiation, salt fog, and fungus resistance, which goes beyond testing standards compared to other rugged devices in its class.

The Z14I includes Durabook’s proprietary DynaVue® technology and high-definition multi-touch screen, offering the highest contrast ratio, which helps to eliminate internal reflections that enhance viewing clarity even from different angles, and in bright sunshine or low light conditions.



ENHANCED PERFORMANCE

Z14I is equipped with Intel® 11th generation CPU featuring Iris® Xe graphics processor, and performance is enhanced to cater for congested data processing. With an ultra high-speed data transmitting capability of Intel® Wi-Fi 6 and Bluetooth® V5.2, all data can be instantly synchronized and fed back to the data center without any interruptions.

Z14I is equipped with Intel® 11th generation CPU

BUILT FOR ALL ENVIRONMENTS

With invincible mechanical design and rigorous component selection, the Z14I can adapt to any environments flawlessly. It is MIL-STD-810H certified with additional items such as explosive atmosphere, solar radiation, salt fog, and fungus resistance; it is also certified for IP 65 and a 6 feet drop guarantee. What’s more is that it has MIL-STD-461G and ANSI-C1D2 certifications which makes it more rugged than ever.

enhanced-performance z14i

COMPREHENSIVELY CUSTOMIZED

A smart device that offers you different types of interfaces with various selections of add-ons, which includes Thunderbolt™ 4, two RJ-45 ports, two RS-232 serial ports, ExpressCard 54 or PCMCIA Type II slot. In addition, USB options offer all capabilities of Type-C to Type-A, or USB 3.2 Gen2 to USB 2.0.
For some customers, specific needs can be catered by our flexible customization package upon purchase.

COMPREHENSIVELY CUSTOMIZED

VIEWING AT ITS BEST

The 14-inch Full HD 1080p widescreen display alone with DynaVue® technology reveals every detail of visual image at a glance. Not only it has the brightness of up to 1000 nits but also the light-filtering technology makes the Z14I the best rugged laptop with highest contrast ratio (CR), which helps to eliminate internal reflections that enhances viewing clarity when viewed at different angles.

full-hd z14i

OPTIMIZED TOUCH TECHNOLOGY

The 10-point capacitive multi-touch panel has four touch modes (Glove, Stylus, Water, Finger), this device is optimized for applications of both indoor and outdoor usage; enhancing the device’s usability regardless of work conditions.

optimized-touch-z14i

STORAGE REVOLUTION

Z14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 4x faster than SATA III. It can accommodate two more internal SATA III SSD drives to maximize the onboard storage.
In addition, the Z14I device provides a media bay for several setup options; such as, an optical disk drive, a second battery or a third SATA III SSD storage to select from.

Z14I is equipped with the latest NVMe PCIe SSD technology

ENDLESS CUSTOMIZATION POSSIBILITIES

The expansion box is one of the most powerful enhancement capability of the Z14I. From a workstation to a portable server, the expansion box provides either two slots of PCIe interface for various solution builds, a dedicated graphics card, military-grade connectors or storage security extension with RAID 0/1/5/10 configurations. It could also be field installed with simple and easy guideline to become a powerful portable server or an ultimate solution for specific tasks.
The unit’s endless configuration possibilities assure users of the power, flexibility, functionality, and data security that they need for their specific applications.

PCIe Expansion Box

PCIe Expansion Box

Discrete VGA Expansion Chassis

Discrete VGA Expansion Chassis

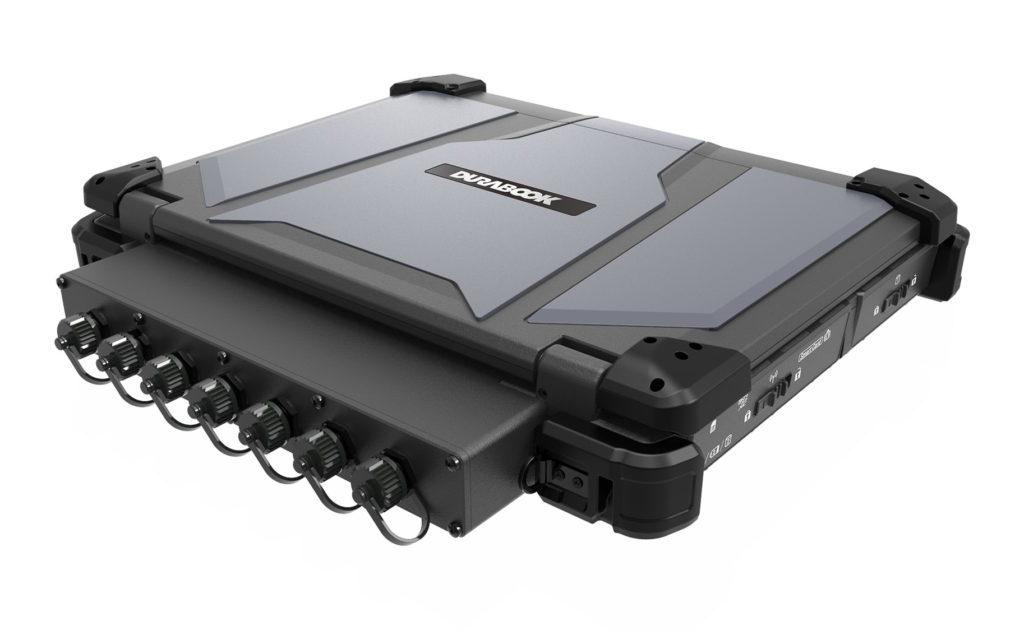

Customized Military-grade Connectors

Storage Extension with RAID 0/1/5/10

Storage Extension with RAID 0/1/5/10

Specifications

Rugged Specs

MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
6′ drop 26 faces
IP 65 certified
Aluminum-magnesium alloy chassis
Port covers
Removable quick-release battery and storage drive
Sunlight readable display
Optional swappable battery technology

Tech Specs

Display14.0” FHD (1920 x1080)
1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System Windows® 10 Pro 64-bit
ProcessorsIntel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache
Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache
Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache
Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Memory2 slots 8GB up to 64GB (3200MHz DDR4)
StorageMain: 256GB/512GB/1TB NVME PCIE SSD
Optional 256GB/512GB/1TB SATA SSD
Optional OPAL 2.0 SSD
Optional 2nd/3rd storage (SATA SSD)1
GraphicsIntel® Iris® Xe Graphics
Optional NVIDIA® GEFORCE GTX 10501
CameraIntegrated 2.0 MP web-cam with shutter design
Optional IR camera for Windows Hello1
AudioIntegrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls
Media Bay
(One Option Only)
Optional DVD super Multi
Optional 2nd battery
Optional SATA SSD
Expansion BoxOptional PCI-Express 3.0 (2 slots)1,6
Optional discrete VGA1,6
Optional storage extension with RAID 0/1/5/101,6
Optional military-grade connectors1
I/O PortsThunderbolt 4 (type C) x 1
USB 3.2 Gen2 (type C) x 1 (support DP)
USB 3.2 Gen2 (type A) x 1
USB 3.2 Gen1 (type A) x 1
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 2
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232 : D-sub,9-pin) x 25
Docking connector (41-pin Pogo) x 1
SIM card x 1
Smart card reader x 1
DC-In jack x 1
ExpressCard 54 x 1 (default) or PCMCIA Type II x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Keyboard & Pointing Device2 user-definable keys (P1/P2)
RF signal slide-switch
Standard membrane keyboard with LED backlight
CommunicationsIntegrated 10/100/1000 Ethernet
Intel® Wi-Fi 6 AX201 (802.11 ax)
Bluetooth® V5.2
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN
SecurityIntel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Smart card reader
Stealth mode
Night vision mode
Kensington lock
Optional Windows Hello1
Optional fingerprint scanner
Optional HF/LF RFID reader1
PowerAC adapter : 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA

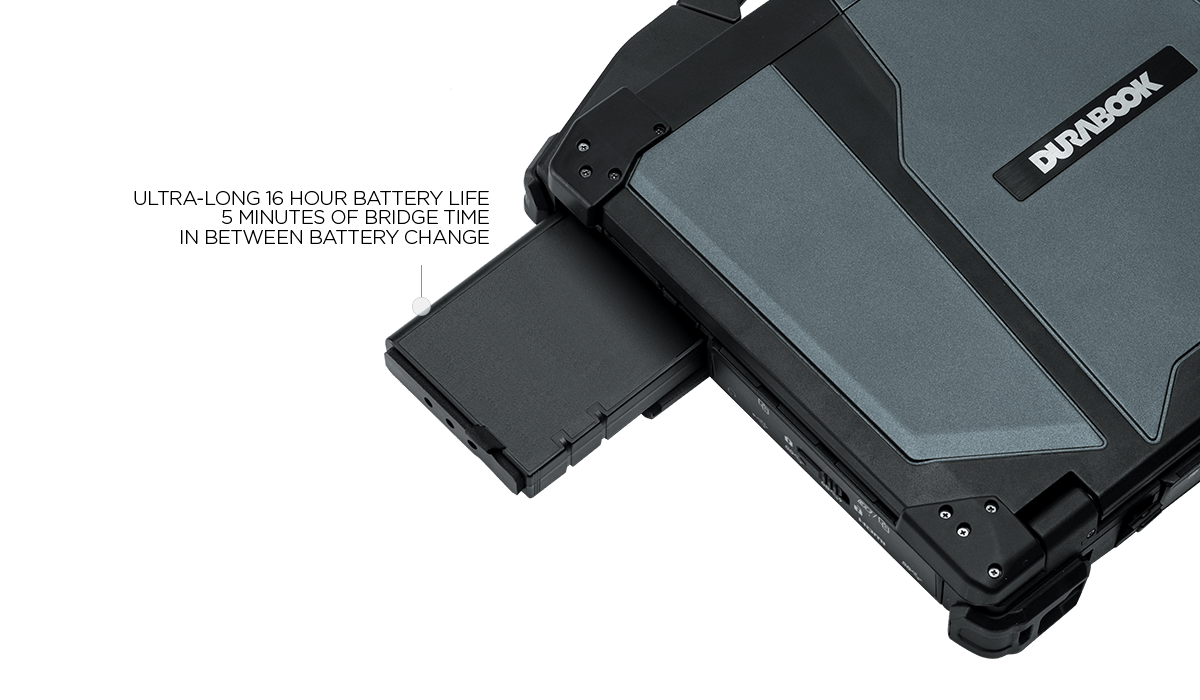

Main battery Li-Ion, 10.8V, 7800mAh, 16 hours2
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2
Optional bridge battery : 5 minutes swap time3
Green DesignRoHS compliant, REACH, Energy Star, EPEAT
CertificationFCC, CE, CUS, CB
Dimension & Weight14.02″(W) x 11.02″(D) x 1.97″ (H)4
7.93 lbs4
Warranty3-Year Accidental Damage Warranty
  1. Contact your sales representative for feature availability.
  2. Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
  3. The system will stay operating within 300 seconds when user swaps the battery.
  4. Weight and dimension vary with options.
  5. One serial port supports RS422/RS485.
  6. Mutually exclusive options.

120W AC Adapter with power cord

3rd SSD for media bay

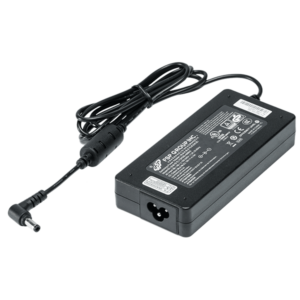

90W AC Adapter with power cord

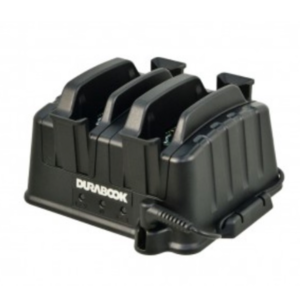

Battery Charger - 2 bays

Battery Charger - 8 bays

Car Adapters

Expansion Box - discrete VGA

Expansion Box - Military-grade Connectors

Expansion Box - PCI-Express (2 slots)

Expansion Box - portable Server

LIND 12-16V Car Adapter with 180 degree connector & 72" cable-bare wire

LIND 12-16V Car Adapter with cigarette plug

LIND 12-32V Car Adapter with bare wire

LIND 12-32V Car Adapter with cigarette plug

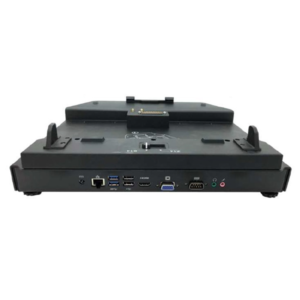

Office Dock with AC Adapter Z14I

Removable 2nd Battery for media bay

Removable Super Multi DVD for media bay

Screen Protector Film Z14I

Shoulder Strap (2 Point)

Spare 256GB-1TB PCIE SSD with canister Z14I

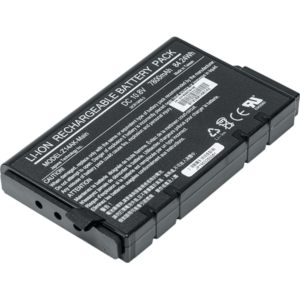

Spare Main Battery Z14I

Spare Stylus & Tether for capacitive touch

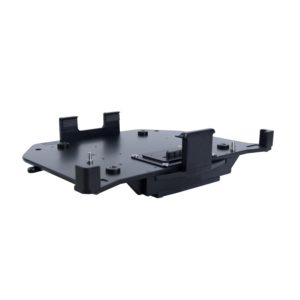

Vehicle Dock with Tri-RF Pass-through (PMT)

Vehicle Dock without Tri-RF Pass-through (PMT)
